52921 | AMP

Insulated forked cable lug, 0.12-0.4 mm², AWG 26 to 22, M2, yellow, 52921

Order No.: 39P3785
EAN: 4099889596007
MPN:
52921
Series: PIDG

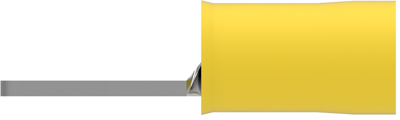

52921 AMP Cable Lugs Image 1

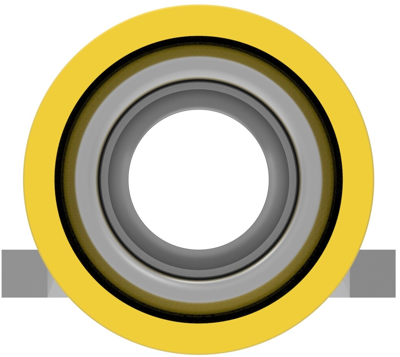

52921 AMP Cable Lugs Image 2

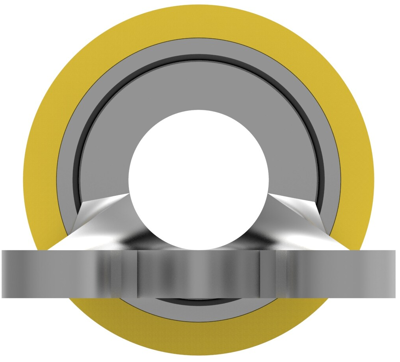

52921 AMP Cable Lugs Image 3

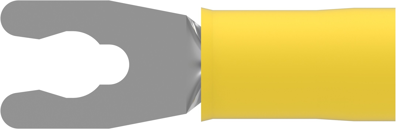

52921 AMP Cable Lugs Image 4
52921 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
1.5946 € *
Available in 5 Days: 6,563 pcs. - if ordered today
Total Price:
7.97 € *
Price list
Quantity
Price per unit*
5 pcs.
1.5946 €
10 pcs.
1.4756 €
25 pcs.
1.3804 €
50 pcs.
1.2495 €
*incl. VAT plus shipping costs
Subject to prior sale

Fork cable lug, 52921, AMP

Shape Description: SPADE-028, Ring & Spade Stud Size: #2,M2, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Terminal Angle: Straight, Voltage (Max): 300 V, Insulation Sleeve Color: Yellow, Ring & Spade Plating Material: Phosphor Bronze,Tin, Terminal & Splice Type: Spring Spade, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 26 – 22 AWG, Wire Size: .12 – .4 mm², Wire Size: 202 – 810 CMA, Stud Diameter: 2.18 mm, Tongue Thickness: .5 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Loose Piece

Technical specifications
Filter Property Value
Material phosphor bronze, tin-plated
AWG cross-section AWG 26 to 22
Version forked cable lug
Isolated Yes
Cable cross-section 0.12-0.4 mm²
Colour yellow
Material Insulation PA
max. operating temperature 105 °C
Thread size M2
Logistics
Property Value
Country of origin TW
Customs tariff number 85369040
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
