52433-1 | AMP

Insulated forked cable lug, 3.0-6.0 mm², AWG 12 to 10, M6, yellow, 52433-1

Order No.: 39P3764
EAN: 4099889595819
MPN:
52433-1
Series: PIDG

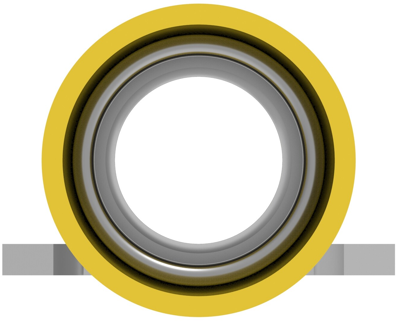

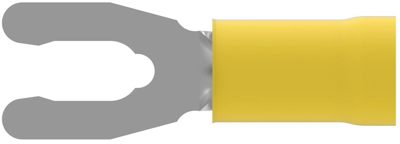

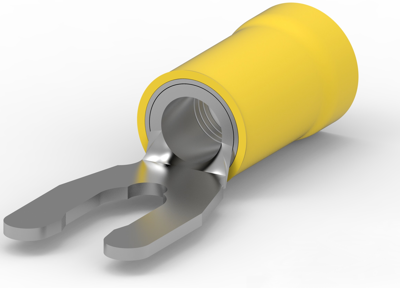

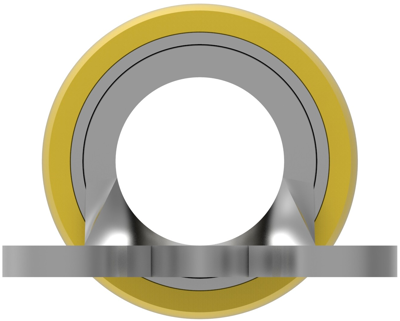

52433-1 AMP Cable Lugs Image 1
52433-1 AMP Cable Lugs Image 2
52433-1 AMP Cable Lugs Image 3
52433-1 AMP Cable Lugs Image 4
52433-1 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
1.1662 € *
Available in 5 Days: 5,238 pcs. - if ordered today
Total Price:
2,915.50 € *
*incl. VAT plus shipping costs
Subject to prior sale
2500 pcs.
1.1662 €

Spring spade terminal, 52433-1, AMP

Spring spade terminal, Wire size: 12 - 10 AWG, Wire size: 3 - 6 mm², Wire size: 5180 - 13100 CMA, Stud size: 1/4, M6 , Body style: PIDG

Technical specifications
Filter Property Value
Version forked cable lug
max. operating temperature 105 °C
Colour yellow
Cable cross-section 3.0-6.0 mm²
AWG cross-section AWG 12 to 10
Material phosphor bronze, tin-plated
Isolated Yes
Material Insulation PA
Thread size M6
Logistics
Property Value
Country of origin IN
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
