52430 | AMP

Insulated forked cable lug, 3.0-6.0 mm², AWG 12 to 10, M3.5, yellow, 52430

Order No.: 39P3768
EAN: 4099889595840
MPN:
52430
Series: PIDG

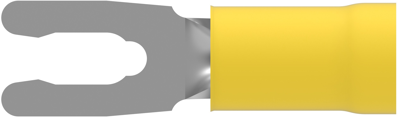

52430 AMP Cable Lugs Image 1

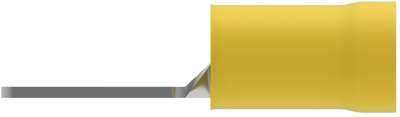

52430 AMP Cable Lugs Image 2

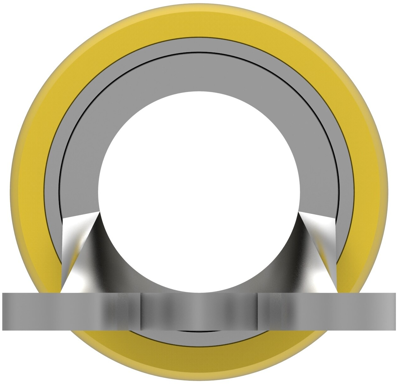

52430 AMP Cable Lugs Image 3

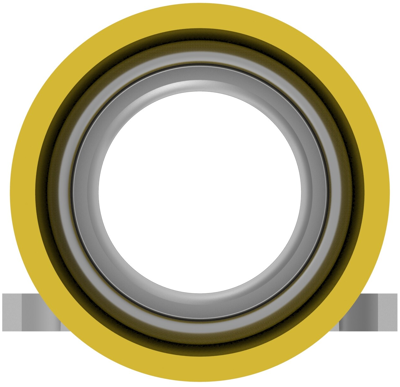

52430 AMP Cable Lugs Image 4

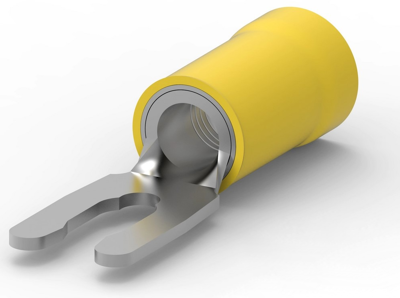

52430 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
0.5117 € *
Standard delivery time from the manufacturer is: 43 Weeks
Total Price:
2,558.50 € *
*incl. VAT plus shipping costs
Subject to prior sale
5000 pcs.
0.5117 €

Fork cable lug, 52430, AMP

Shape Description: SPADE-031, Ring & Spade Stud Size: #6,M3.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Terminal Angle: Straight, Voltage (Max): 300 V, Inspection Slot: No, Ring & Spade Plating Material: Phosphor Bronze,Tin, Terminal & Splice Type: Spring Spade, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 12 – 10 AWG, Wire Size: 3 – 6 mm², Wire Size: 5180 – 13100 CMA, Stud Diameter: 3.51 mm, Tongue Thickness: 1.07 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 500, Ring & Spade Packaging Method: Loose Piece

Technical specifications
Filter Property Value
Version forked cable lug
max. operating temperature 105 °C
Colour yellow
Cable cross-section 3.0-6.0 mm²
AWG cross-section AWG 12 to 10
Material phosphor bronze, tin-plated
Isolated Yes
Material Insulation PA
Thread size M3.5
Logistics
Property Value
Country of origin TW
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
