52430-2 | AMP

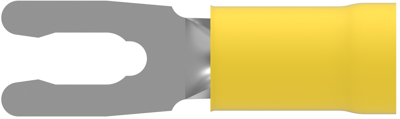

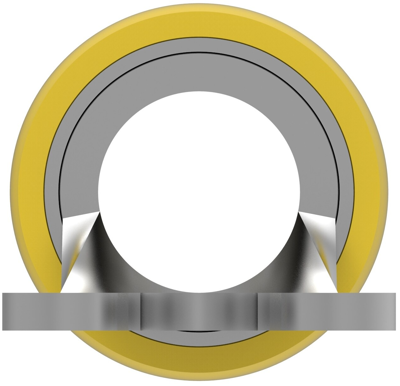

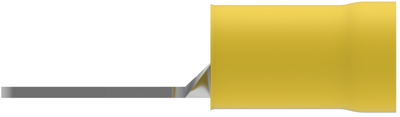

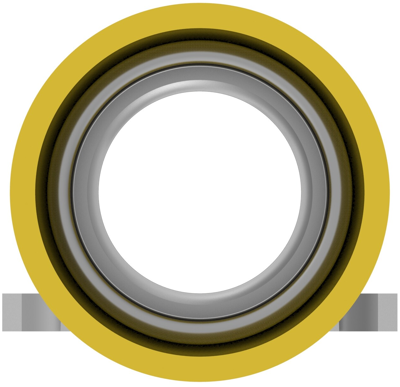

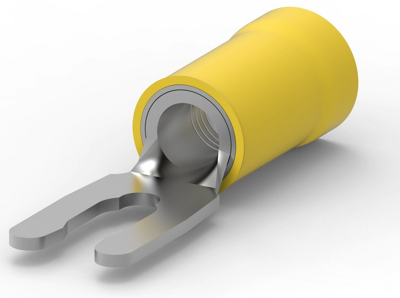

Insulated forked cable lug, 3.0-6.0 mm², AWG 12 to 10, 3.51 mm, M3.5, yellow, 52430-2
Unit Price (€ / pc.)
0.8449 € *
Standard delivery time from the manufacturer is: 43 Weeks
Fork cable lug, 52430-2, AMP
Shape Description: SPADE-031, Ring & Spade Stud Size: #6,M3.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Terminal Angle: Straight, Voltage (Max): 300 V, Inspection Slot: No, Ring & Spade Plating Material: Phosphor Bronze,Tin, Terminal & Splice Type: Spring Spade, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 12 – 10 AWG, Wire Size: 3 – 6 mm², Wire Size: 5180 – 13100 CMA, Stud Diameter: 3.51 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 2500, Ring & Spade Packaging Method: Tape Mounted
Technical specifications
| Colour | yellow | |
| Isolated | Yes | |
| AWG cross-section | AWG 12 to 10 | |
| Hole diameter | 3.51 mm | |
| Cable cross-section | 3.0-6.0 mm² | |
| Version | forked cable lug | |
| Material | phosphor bronze, tin-plated | |
| max. operating temperature | 105 °C | |
| Material Insulation | PA | |
| Thread size | M3.5 |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85369040 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
