52420-2 | AMP
Insulated forked cable lug, 1.25-2.0 mm², AWG 16 to 14, 3.51 mm, M3.5, blue, 52420-2
Order No.: 39P3321
EAN: 4099889592412
MPN:
52420-2
Unit Price (€ / pc.)
0.4403 € *
Standard delivery time from the manufacturer is: 21 Weeks

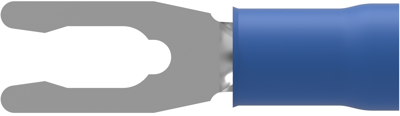

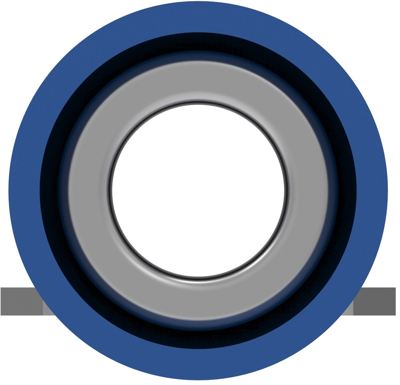

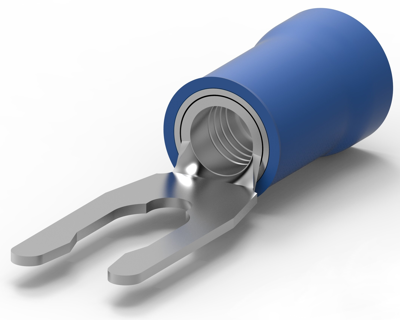

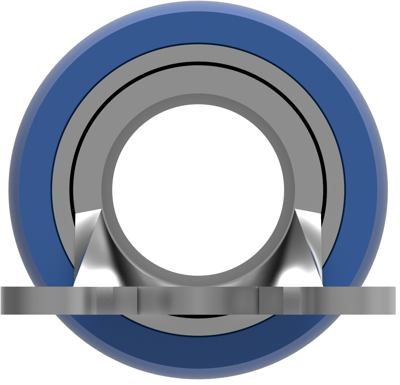

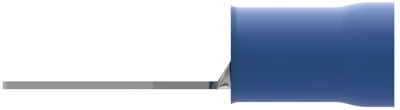

Fork cable lug, 52420-2, AMP
Shape Description: SPADE-031, Ring & Spade Stud Size: #6,M3.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Terminal Angle: Straight, Voltage (Max): 300 V, Insulation Sleeve Color: Blue, Ring & Spade Plating Material: Phosphor Bronze,Tin, Terminal & Splice Type: Spring Spade, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 16 – 14 AWG, Wire Size: 1.25 – 2 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 3.51 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 5000, Ring & Spade Packaging Method: Tape Mounted
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | forked cable lug | |
| max. operating temperature | 105 °C | |
| Colour | blue | |
| Cable cross-section | 1.25-2.0 mm² | |
| AWG cross-section | AWG 16 to 14 | |
| Material | phosphor bronze, tin-plated | |
| Hole diameter | 3.51 mm | |
| Isolated | Yes | |
| Material Insulation | PA | |
| Thread size | M3.5 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85369040 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
