52411 | AMP
Insulated forked cable lug, 0.3-1.42 mm², AWG 22 to 16, red
Unit Price (€ / pc.)
0.8449 € *
Available: 0 pcs.
Leadtime: 39 Weeks **

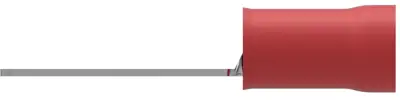

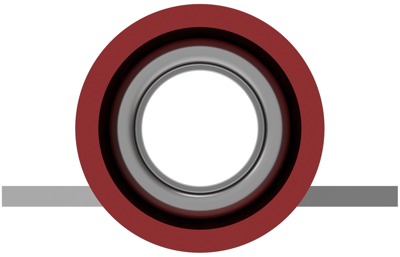

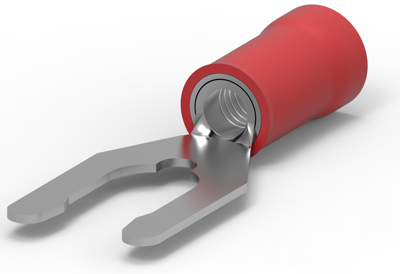

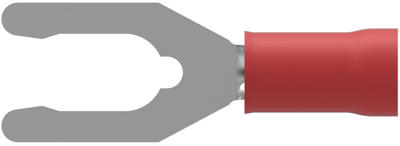

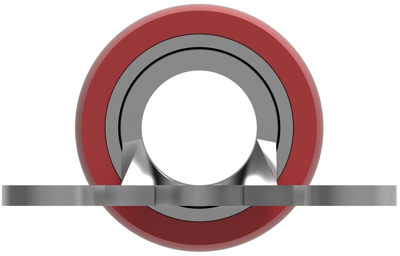

Fork cable lug, 52411, AMP
Shape Description: SPADE-031, Ring & Spade Stud Size: #10, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Terminal Angle: Straight, Voltage (Max): 300 V, Stripe Color: Red, Ring & Spade Plating Material: Phosphor Bronze,Tin, Terminal & Splice Type: Spring Spade, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 22 – 16 AWG, Wire Size: 0.3 – 1.42 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 4.82 mm, Tongue Thickness: 0.84 mm, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | forked cable lug | |
| AWG cross-section | AWG 22 to 16 | |
| Colour | red | |
| Material Insulation | PA | |
| Isolated | Yes | |
| Cable cross-section | 0.3-1.42 mm² | |
| Material | phosphor bronze, tin-plated | |
| max. operating temperature | 105 °C |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
