52409-1 | AMP

Insulated 27400203, 0.3-1.42 mm², AWG 22 to 16, 3.51 mm, C6/M3.5, red, 52409-1

Order No.: 39P3481
MPN:
52409-1
PIDG SP SPD 22-16COM22-18MIL 6
Series: PIDG

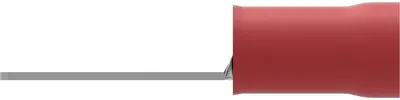

52409-1 AMP Cable Lugs Image 1

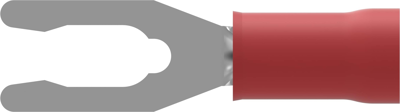

52409-1 AMP Cable Lugs Image 2

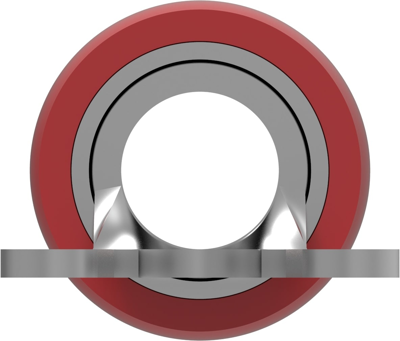

52409-1 AMP Cable Lugs Image 3

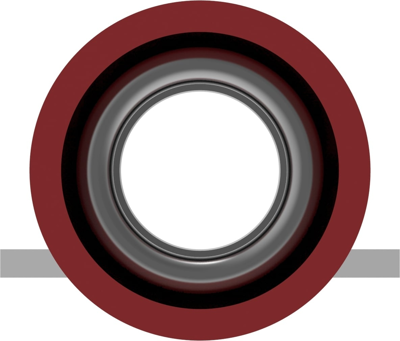

52409-1 AMP Cable Lugs Image 4
52409-1 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
1.1186 € *
Available in 5 Days: 16,627 pcs. - if ordered today
Total Price:
1.12 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1186 €
10 pcs.
1.0353 €
50 pcs.
0.9520 €
100 pcs.
0.8925 €
*incl. VAT plus shipping costs
Subject to prior sale

Fork cable lug, 52409-1, AMP

Spring Spade Terminal, 22 - 16 AWG, #6 / M3.5 Stud, 3.51 mm Stud Diameter, Closed Barrel, Straight, Tin Plating, Partially Insulated.

Technical specifications
Filter Property Value
AWG cross-section AWG 22 to 16
Thread size C6/M3.5
Colour red
Isolated Yes
Hole diameter 3.51 mm
Material phosphor bronze, tin-plated
Material Insulation nylon
max. operating temperature 105 °C
Version forked cable lug
Cable cross-section 0.3-1.42 mm²
Logistics
Property Value
Country of origin US
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
