52266-4 | AMP

Insulated ring cable lug, 21 mm², AWG 4, 9.53 mm, yellow, 52266-4

Order No.: 39P4181
EAN: 4099889599022
MPN:
52266-4
Series: PLASTI-GRIP

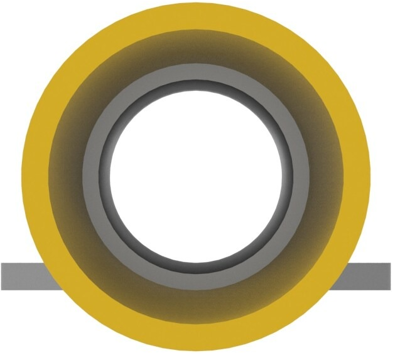

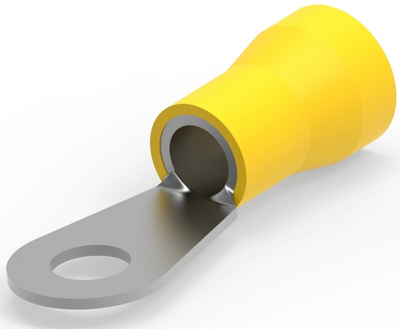

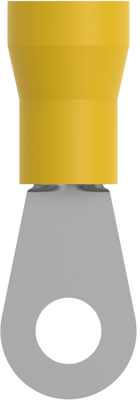

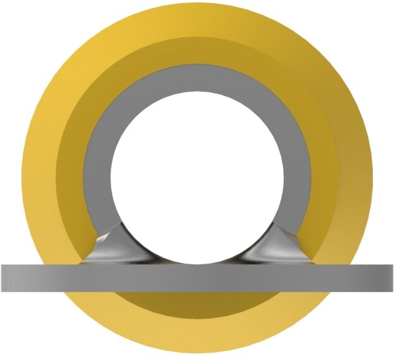

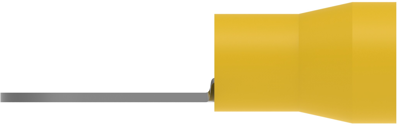

52266-4 AMP Cable Lugs Image 1
52266-4 AMP Cable Lugs Image 2
52266-4 AMP Cable Lugs Image 3
52266-4 AMP Cable Lugs Image 4
52266-4 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
4.9028 € *
Available in 5 Days: 3,154 pcs. - if ordered today
Total Price:
4.90 € *
Price list
Quantity
Price per unit*
1 pcs.
4.9028 €
10 pcs.
4.5458 €
25 pcs.
4.2483 €
50 pcs.
3.8556 €
*incl. VAT plus shipping costs
Subject to prior sale

Ring cable lug, 52266-4, AMP

Shape Description: RING-044, Ring & Spade Stud Size: 3/8, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 600 V, Stripe Color: Yellow, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 4 AWG, Wire Size: 21 mm², Wire Size: 33100 – 52600 CMA, Stud Diameter: 9.53 mm,9.91 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Loose Piece

Technical specifications
Filter Property Value
Version ring cable lug
max. operating temperature 105 °C
Colour yellow
Cable cross-section 21 mm²
AWG cross-section AWG 4
Material copper, tin-plated
Hole diameter 9.53 mm
Isolated Yes
Material Insulation vinyl
Logistics
Property Value
Country of origin TW
Customs tariff number 85369095
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
