52266-3 | AMP

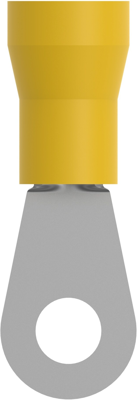

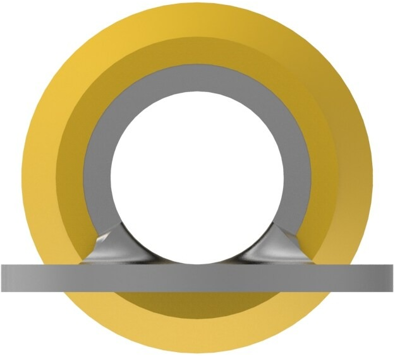

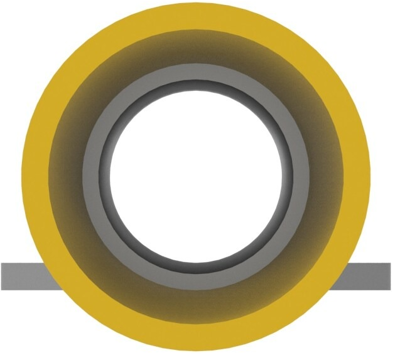

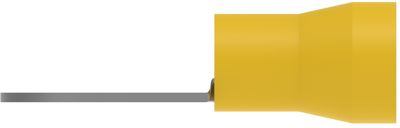

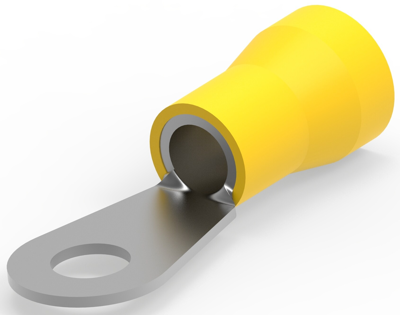

Insulated ring cable lug, 21 mm², AWG 4, 8.33 mm, M8, yellow, 52266-3
Unit Price (€ / pc.)
2.1777 € *
Available in 5 Days: 1,950 pcs. - if ordered today
Cable lug, 52266-3, AMP
Shape Description: RING-044, Ring & Spade Stud Size: 5/16,M8, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 600 V, Insulation Sleeve Color: Yellow, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 4 AWG, Wire Size: 21 mm², Wire Size: 33100 – 52600 CMA, Stud Diameter: 8.33 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 4 | |
| Colour | yellow | |
| Material Insulation | vinyl | |
| Isolated | Yes | |
| Cable cross-section | 21 mm² | |
| Thread size | M8 | |
| Material | copper, tin-plated | |
| max. operating temperature | 105 °C | |
| Version | ring cable lug | |
| Hole diameter | 8.33 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
