52263-2 | AMP

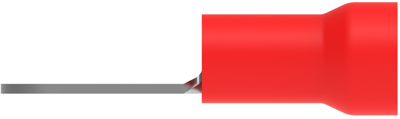

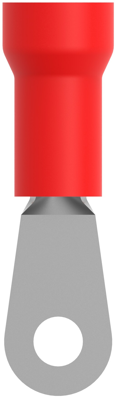

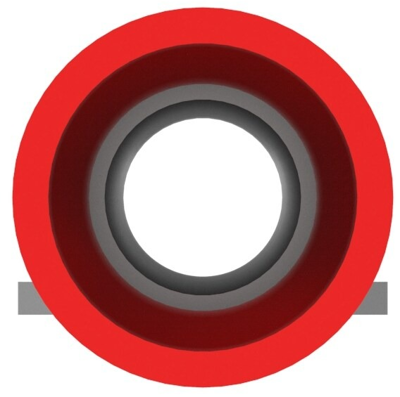

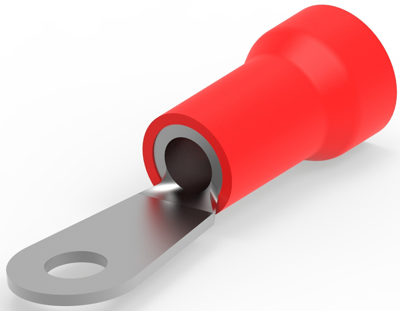

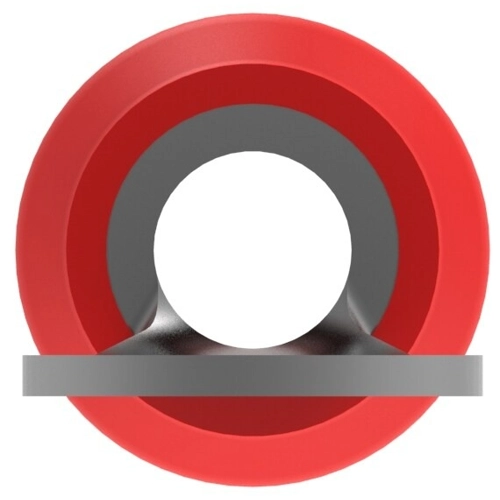

Insulated ring cable lug, 8.0 mm², AWG 8, 5 mm, red, 52263-2
Unit Price (€ / pc.)
0.9044 € *
Standard delivery time from the manufacturer is: 43 Weeks
Total Price:
4.52 € *
Price list
Quantity
Price per unit*
5 pcs.
0.9044 €
10 pcs.
0.8330 €
25 pcs.
0.7854 €
50 pcs.
0.7021 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 52263-2, AMP
Shape Description: RING-044, Ring & Spade Stud Size: #10, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 600 V, Inspection Slot: No, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 8 AWG, Wire Size: 8 mm², Wire Size: 13100 – 20800 CMA, Stud Diameter: 5 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 500, Ring & Spade Packaging Method: Tape Mounted
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | copper, tin-plated | |
| AWG cross-section | AWG 8 | |
| Version | ring cable lug | |
| Isolated | Yes | |
| Cable cross-section | 8.0 mm² | |
| Colour | red | |
| Hole diameter | 5 mm | |
| Material Insulation | vinyl | |
| max. operating temperature | 105 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
