52262-1 | AMP

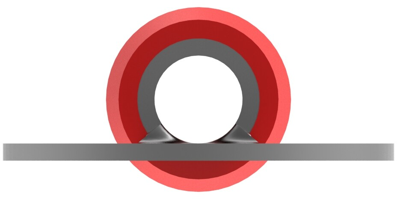

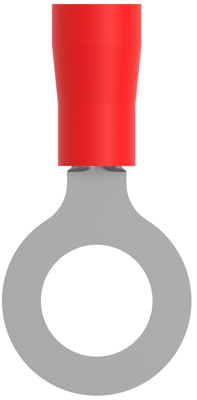

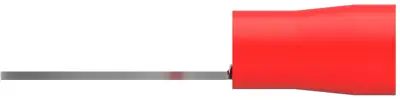

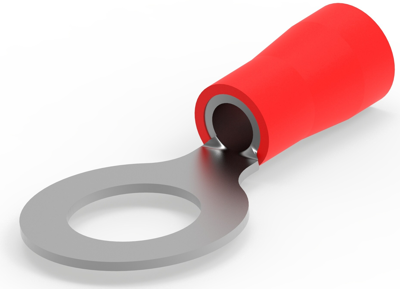

Insulated ring cable lug, 8.0 mm², AWG 8, 13.08 mm, M12, red, 52262-1
Unit Price (€ / pc.)
2.1063 € *
Standard delivery time from the manufacturer is: 43 Weeks
Cable lug, 52262-1, AMP
Shape Description: RING-043, Ring & Spade Stud Size: 1/2,M12, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 600 V, Inspection Slot: No, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 8 AWG, Wire Size: 8 mm², Wire Size: 13100 – 20800 CMA, Stud Diameter: 13.08 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material Insulation | vinyl | |
| Isolated | Yes | |
| Version | ring cable lug | |
| max. operating temperature | 105 °C | |
| Colour | red | |
| Hole diameter | 13.08 mm | |
| AWG cross-section | AWG 8 | |
| Thread size | M12 | |
| Material | copper, tin-plated | |
| Cable cross-section | 8.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
