52077-2 | AMP

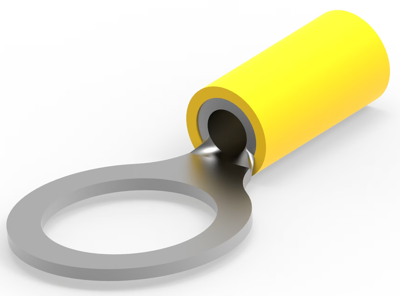

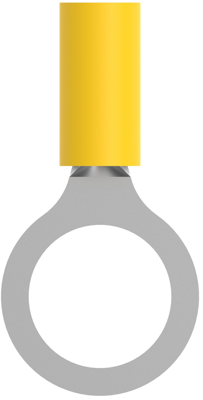

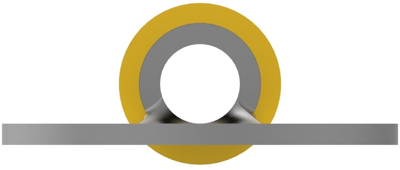

Insulated ring cable lug, 6.11 mm², AWG 10, 13.08 mm, M12, yellow, 52077-2
Unit Price (€ / pc.)
2.7727 € *
Available in 5 Days: 1,667 pcs. - if ordered today
Total Price:
2.77 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7727 €
10 pcs.
2.5704 €
25 pcs.
2.4038 €
50 pcs.
2.1777 €
*incl. VAT plus shipping costs
Subject to prior sale
Ring cable lug, 52077-2, AMP
Ring terminal, Ring tongue, 10 AWG Wire size, 6.11 mm² Wire size, 12066 CMA Wire size, Stud size M12/1/2.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 10 | |
| Hole diameter | 13.08 mm | |
| Colour | yellow | |
| shrinkable tubing | Yes | |
| Thread size | M12 | |
| Material Insulation | PA | |
| max. operating temperature | 105 °C | |
| Cable cross-section | 6.11 mm² | |
| Material | copper, tin-plated | |
| Version | ring cable lug | |
| Isolated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
