52042-5 | AMP

Insulated ring cable lug, 13-15 mm², AWG 6, 5 mm, blue, 52042-5

Order No.: 39P4253
EAN: 4099889599725
MPN:
52042-5
Series: PLASTI-GRIP

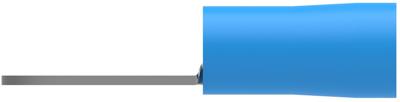

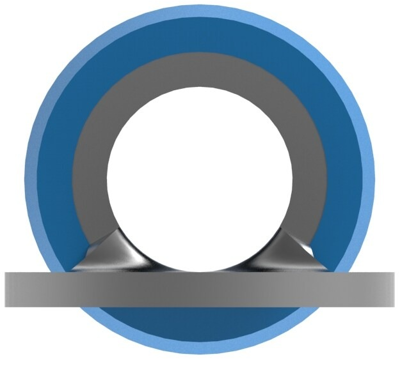

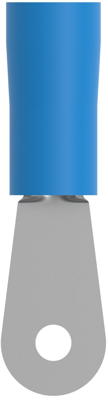

52042-5 AMP Cable Lugs Image 1
52042-5 AMP Cable Lugs Image 2
52042-5 AMP Cable Lugs Image 3
52042-5 AMP Cable Lugs Image 4
52042-5 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
1.3328 € *
Available in 5 Days: 2,700 pcs. - if ordered today
Total Price:
6.66 € *
Price list
Quantity
Price per unit*
5 pcs.
1.3328 €
10 pcs.
1.2376 €
25 pcs.
1.1543 €
50 pcs.
1.0472 €
*incl. VAT plus shipping costs
Subject to prior sale

Ring cable lug, 52042-5, AMP

Shape Description: RING-044, Ring & Spade Stud Size: #10, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 600 V, Stripe Color: Blue, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 6 AWG, Wire Size: 13 – 15 mm², Wire Size: 20800 – 33100 CMA, Stud Diameter: 5 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Loose Piece

Technical specifications
Filter Property Value
Material copper, tin-plated
AWG cross-section AWG 6
Version ring cable lug
Isolated Yes
Cable cross-section 13-15 mm²
Colour blue
Hole diameter 5 mm
Material Insulation PVC
max. operating temperature 105 °C
Logistics
Property Value
Country of origin TH
Customs tariff number 85369040
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
