52041 | AMP

Insulated ring cable lug, 8.0 mm², AWG 8, 4.34 mm, M4, red, 52041

Order No.: 39P4258
EAN: 4099889599770
MPN:
52041
Series: PLASTI-GRIP

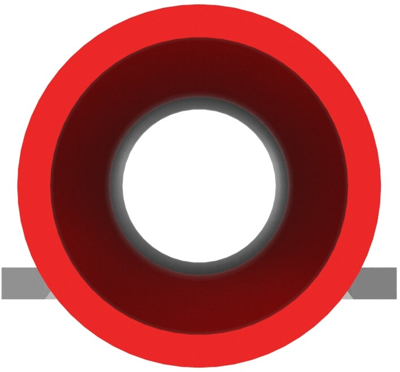

52041 AMP Cable Lugs Image 1

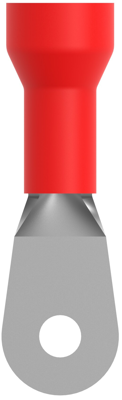

52041 AMP Cable Lugs Image 2

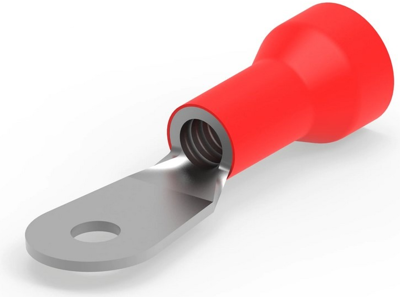

52041 AMP Cable Lugs Image 3

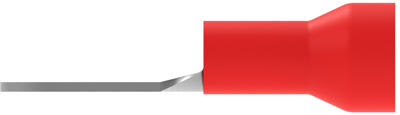

52041 AMP Cable Lugs Image 4

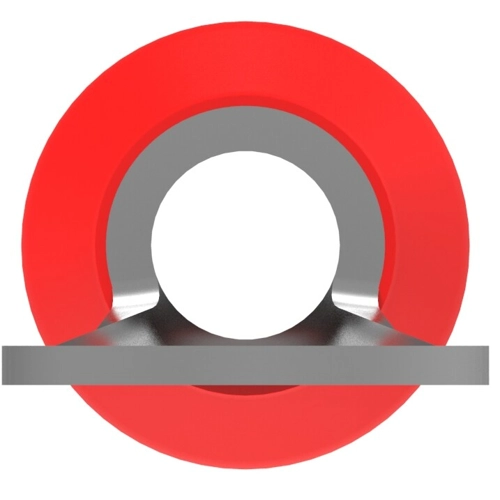

52041 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
1.1900 € *
Standard delivery time from the manufacturer is: 43 Weeks
Total Price:
5.95 € *
Price list
Quantity
Price per unit*
5 pcs.
1.1900 €
10 pcs.
1.1067 €
25 pcs.
1.0234 €
50 pcs.
0.9282 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable lug, 52041, AMP

Shape Description: RING-043, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 600 V, Inspection Slot: No, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 8 AWG, Wire Size: 8 mm², Wire Size: 13100 – 20800 CMA, Stud Diameter: 4.34 mm, Tongue Thickness: 1.02 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Loose Piece

Technical specifications
Filter Property Value
Material copper, tin-plated
AWG cross-section AWG 8
Version ring cable lug
Isolated Yes
Cable cross-section 8.0 mm²
Colour red
Hole diameter 4.34 mm
Material Insulation vinyl
max. operating temperature 105 °C
Thread size M4
Logistics
Property Value
Country of origin TH
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
