52041-3 | AMP

Insulated ring cable lug, 8.0 mm², AWG 8, 6.73 mm, M6, red, 52041-3

Order No.: 39P4257
EAN: 4099889599763
MPN:
52041-3
Series: PLASTI-GRIP

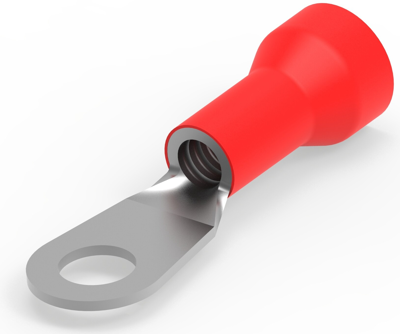

52041-3 AMP Cable Lugs Image 1

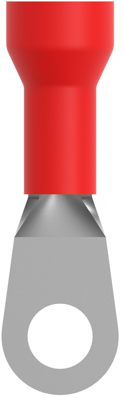

52041-3 AMP Cable Lugs Image 2

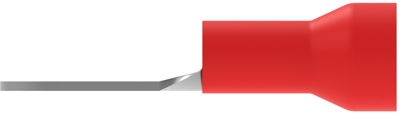

52041-3 AMP Cable Lugs Image 3

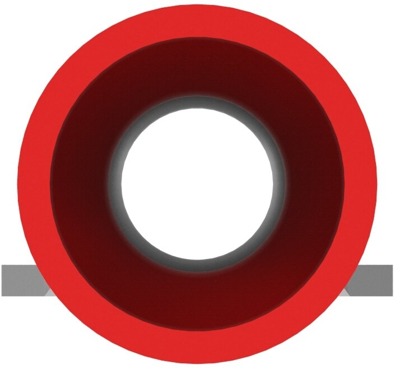

52041-3 AMP Cable Lugs Image 4

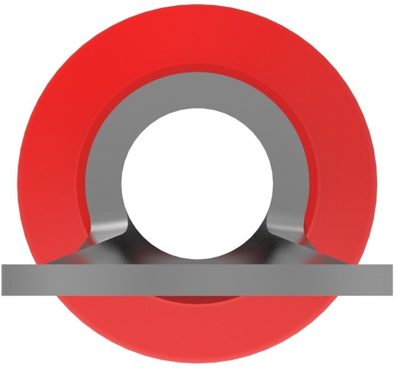

52041-3 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
1.1186 € *
Available in 5 Days: 1,600 pcs. - if ordered today
Total Price:
5.59 € *
Price list
Quantity
Price per unit*
5 pcs.
1.1186 €
10 pcs.
1.0353 €
25 pcs.
0.9639 €
50 pcs.
0.8687 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable lug, 52041-3, AMP

Shape Description: RING-044, Ring & Spade Stud Size: 1/4,M6, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 600 V, Inspection Slot: No, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 8 AWG, Wire Size: 8 mm², Wire Size: 13100 – 20800 CMA, Stud Diameter: 6.73 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Loose Piece

Technical specifications
Filter Property Value
Material copper, tin-plated
Cable cross-section 8.0 mm²
Version ring cable lug
AWG cross-section AWG 8
max. operating temperature 105 °C
Material Insulation vinyl
Colour red
Hole diameter 6.73 mm
Isolated Yes
Thread size M6
Logistics
Property Value
Country of origin TH
Customs tariff number 85369010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
