51864-3 | AMP

Insulated ring cable lug, 1.31-2.08 mm², AWG 16 to 14, 3.68 mm, M3.5, blue, 51864-3

Order No.: 39P3300
EAN: 4099889592269
MPN:
51864-3
Series: PIDG

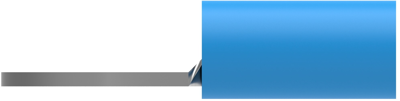

51864-3 AMP Cable Lugs Image 1

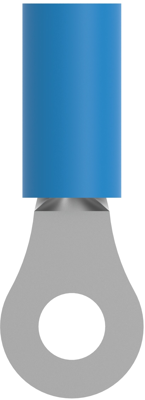

51864-3 AMP Cable Lugs Image 2

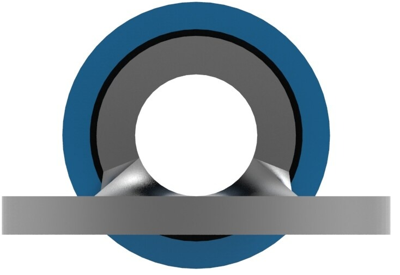

51864-3 AMP Cable Lugs Image 3

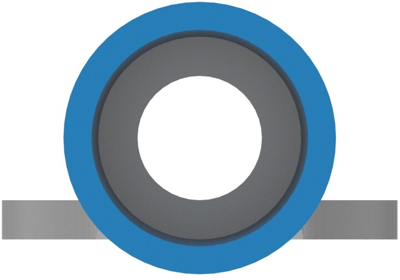

51864-3 AMP Cable Lugs Image 4

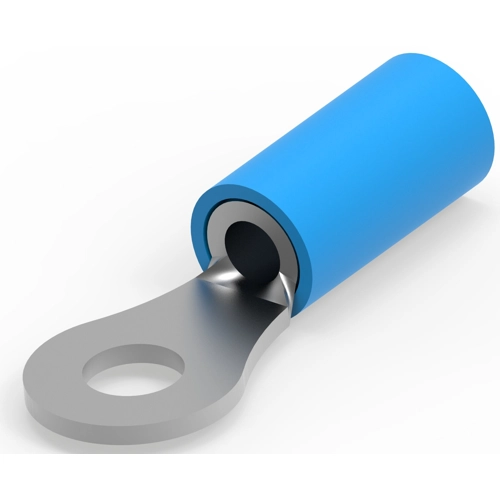

51864-3 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
0.2475 € *
Available in 5 Days: 23,508 pcs. - if ordered today
Total Price:
1,237.60 € *
*incl. VAT plus shipping costs
Subject to prior sale
5000 pcs.
0.2475 €

Cable lug, 51864-3, AMP

Shape Description: RING-041, Ring & Spade Stud Size: #6,M3.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Stripe Color: Blue, Ring & Spade Plating Material: Copper,Tin, Military Part Class: Class II, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 16 – 14 AWG, Wire Size: 1.31 – 2.08 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 3.68 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 5000, Ring & Spade Packaging Method: Tape Mounted

Technical specifications
Filter Property Value
Version ring cable lug
max. operating temperature 105 °C
Colour blue
Cable cross-section 1.31-2.08 mm²
AWG cross-section AWG 16 to 14
Material copper, tin-plated
Hole diameter 3.68 mm
Isolated Yes
Material Insulation PA
Thread size M3.5
Logistics
Property Value
Country of origin US
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
