50845-1 | AMP

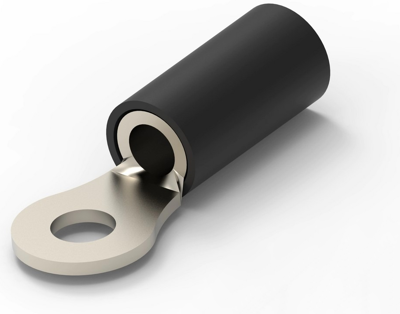

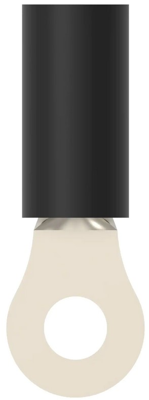

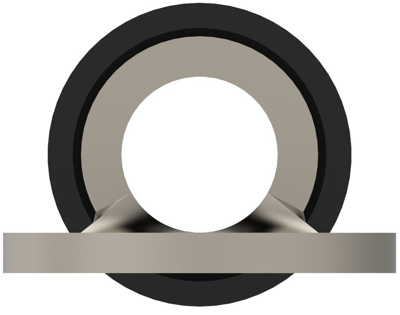

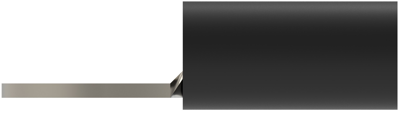

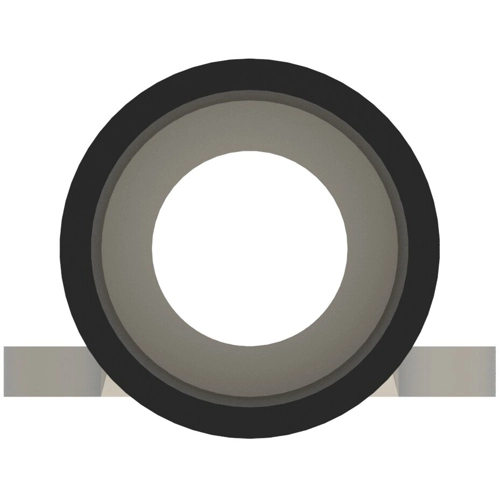

Insulated ring cable lug, 3.0-6.0 mm², AWG 12 to 10, 4.34 mm, M4, 50845-1
Order No.: 39P3173
EAN: 4099889591422
MPN:
50845-1
Unit Price (€ / pc.)
12.9710 € *
Available in 5 Days: 3,133 pcs. - if ordered today
Total Price:
12.97 € *
Price list
Quantity
Price per unit*
1 pcs.
12.9710 €
10 pcs.
12.0547 €
25 pcs.
11.2455 €
50 pcs.
10.2221 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 50845-1, AMP
Shape Description: RING-052, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Weight per Piece: 2.828 g, Ring & Spade Plating Material: Copper,Nickel, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 12 – 10 AWG, Wire Size: 3 – 6 mm², Wire Size: 5180 – 13100 CMA, Stud Diameter: 4.34 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 288 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 500, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material Insulation | PTFE | |
| Isolated | Yes | |
| Version | ring cable lug | |
| max. operating temperature | 288 °C | |
| Hole diameter | 4.34 mm | |
| AWG cross-section | AWG 12 to 10 | |
| Thread size | M4 | |
| Material | copper, nickel-plated | |
| Cable cross-section | 3.0-6.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
