50835 | AMP

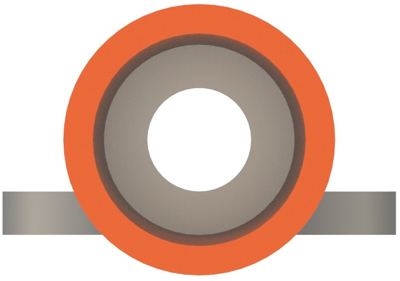

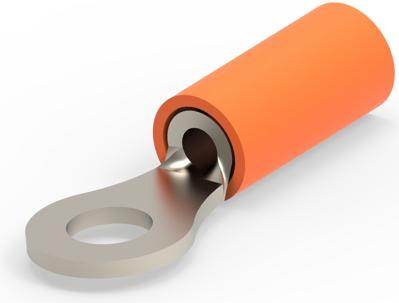

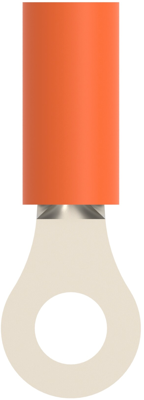

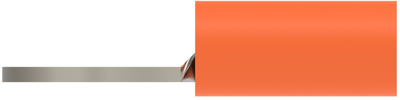

Insulated ring cable lug, 0.8-1.4 mm², AWG 18 to 16, 3.68 mm, M3.5, 50835
Order No.: 39P3179
EAN: 4099889591477
MPN:
50835
Unit Price (€ / pc.)
4.1531 € *
Standard delivery time from the manufacturer is: 45 Weeks
Cable lug, 50835, AMP
Shape Description: RING-052, Ring & Spade Stud Size: #6,M3.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Weight per Piece: 5.277 g, Ring & Spade Plating Material: Copper,Nickel, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 18 – 16 AWG, Wire Size: .8 – 1.4 mm², Wire Size: 1600 – 2800 CMA, Stud Diameter: 3.68 mm, Tongue Thickness: .84 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 288 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 5000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 18 to 16 | |
| Hole diameter | 3.68 mm | |
| Thread size | M3.5 | |
| Material Insulation | PTFE | |
| max. operating temperature | 288 °C | |
| Cable cross-section | 0.8-1.4 mm² | |
| Material | copper, nickel-plated | |
| Version | ring cable lug | |
| Isolated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
