42913-2 | AMP

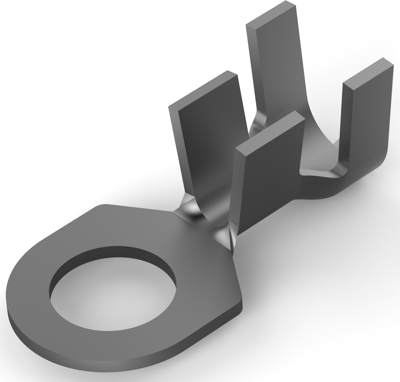

Uninsulated ring cable lug, 5.0-15 mm², AWG 10 to 6, 7.92 mm, M8, metal, 42913-2
Order No.: 35P2423
EAN: 4099889590036
MPN:
42913-2
Unit Price (€ / pc.)
0.3689 € *
Available in 5 Days: 3,200 pcs. - if ordered today
Cable lug, 42913-2, AMP
Shape Description: D Shaped, Ring & Spade Stud Size: 5/16,M8, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 3.79 g, Ring & Spade Plating Material: Tin, Contact Base Material: Brass, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: None, Wire Insulation Support: With, Wire Insulation Diameter (Min): , Wire Size: 10 – 6 AWG, Wire Size: 5 – 15 mm², Wire Size: 10382 – 26248 CMA, Stud Diameter: 7.92 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 110 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1600, Ring & Spade Packaging Method: Strip/Reel
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | brass, tin-plated | |
| max. operating temperature | 110 °C | |
| Version | ring cable lug | |
| Hole diameter | 7.92 mm | |
| Thread size | M8 | |
| Isolated | No | |
| AWG cross-section | AWG 10 to 6 | |
| Colour | metal | |
| Cable cross-section | 5.0-15 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
