42547-2 | AMP

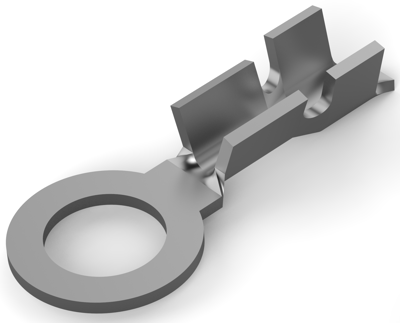

Uninsulated ring cable lug, 0.12-0.4 mm², AWG 26 to 22, 3.02 mm, M2.5, metal
Order No.: 35P2343
EAN: 4099889589436
MPN:
42547-2
Unit Price (€ / pc.)
0.0583 € *
Available: 0 pcs.
Leadtime: On Request **
Cable lug, 42547-2, AMP
Shape Description: Circular/Oval, Ring & Spade Stud Size: #4,M2.5, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: .1 g, Ring & Spade Plating Material: Tin, Contact Base Material: Brass, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: Nickel, Wire Insulation Support: With, Wire Insulation Diameter (Min): , Wire Size: 26 – 22 AWG, Wire Size: .12 – .4 mm², Wire Size: 254 – 642 CMA, Stud Diameter: 3.02 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 110 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 20000, Ring & Spade Packaging Method: Strip/Reel
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 26 to 22 | |
| Colour | metal | |
| Thread size | M2.5 | |
| Isolated | No | |
| Cable cross-section | 0.12-0.4 mm² | |
| Hole diameter | 3.02 mm | |
| Material | brass, tin-plated | |
| max. operating temperature | 110 °C |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
