42169-2 | AMP
Uninsulated forked cable lug, 0.8-2.0 mm², AWG 18 to 14, 4.82 mm, metal, 42169-2
Order No.: 35P2515
EAN: 4099889590616
MPN:
42169-2
Unit Price (€ / pc.)
0.1476 € *
Available in 5 Days: 30,000 pcs. - if ordered today

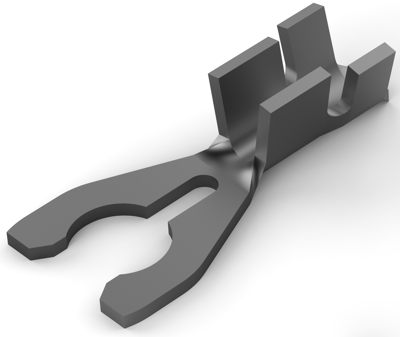

Fork cable lug, 42169-2, AMP
Shape Description: Spring Spade, Ring & Spade Stud Size: #10, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Terminal Angle: Straight, Weight per Piece: 1.043 g, Ring & Spade Plating Material: Tin, Contact Base Material: Brass, Terminal & Splice Type: Spade Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: Nickel, Wire Insulation Support: With, Wire Insulation Diameter (Min): , Wire Size: 18 – 14 AWG, Wire Size: .8 – 2 mm², Wire Size: 1624 – 4106 CMA, Stud Diameter: 4.82 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 10000, Ring & Spade Packaging Method: Strip/Reel
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 18 to 14 | |
| Colour | metal | |
| Isolated | No | |
| Cable cross-section | 0.8-2.0 mm² | |
| Material | brass, tin-plated | |
| max. operating temperature | 110 °C | |
| Version | forked cable lug | |
| Hole diameter | 4.82 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
