41711 | AMP
Uninsulated ring cable lug, 0.3-0.9 mm², AWG 22 to 18, 6.73 mm, M6, metal, 41711
Order No.: 35P2390
EAN: 4099889589788
MPN:
41711
Unit Price (€ / pc.)
0.1297 € *
Available in 5 Days: 6,000 pcs. - if ordered today

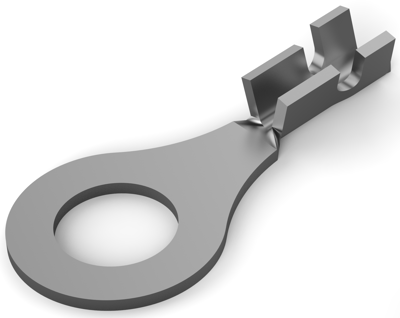

Ring cable lug, 41711, AMP
Shape Description: Circular/Oval, Ring & Spade Stud Size: M6, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 0.917 g, Ring & Spade Plating Material: Tin, Contact Base Material: Brass, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: Nickel, Wire Insulation Support: With, Wire Insulation Diameter (Min): , Wire Size: 22 – 18 AWG, Wire Size: 0.3 -0.9 mm², Wire Size: 642 – 1624 CMA, Stud Diameter: 6.73 mm, Operating Temperature Range: -40 – 110 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 6000, Ring & Spade Packaging Method: Strip/Reel
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolated | No | |
| Colour | metal | |
| Hole diameter | 6.73 mm | |
| max. operating temperature | 110 °C | |
| Cable cross-section | 0.3-0.9 mm² | |
| Version | ring cable lug | |
| Material | brass, tin-plated | |
| AWG cross-section | AWG 22 to 18 | |
| Thread size | M6 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
