41581 | AMP
Uninsulated ring cable lug, 0.2-0.6 mm², AWG 24 to 20, 4.34 mm, M4, metal, 41581
Order No.: 35P2487
EAN: 4099889590425
MPN:
41581
Unit Price (€ / pc.)
0.1000 € *
Standard delivery time from the manufacturer is: 23 Weeks

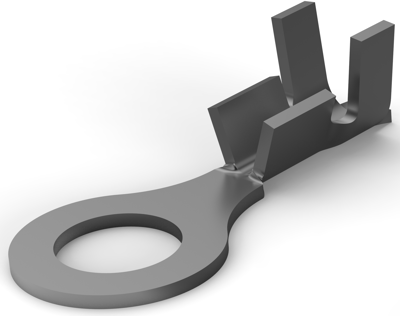

Ring cable lug, 41581, AMP
Shape Description: Circular/Oval, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 0.578 g, Ring & Spade Plating Material: Tin, Contact Base Material: Brass, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: Nickel, Wire Insulation Support: With, Wire Insulation Diameter (Min): , Wire Size: 24 – 20 AWG, Wire Size: 0.2 -0.6 mm², Wire Size: 404 – 1021 CMA, Stud Diameter: 4.34 mm, Operating Temperature Range: -40 – 110 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 15000, Ring & Spade Packaging Method: Strip/Reel
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | metal | |
| Isolated | No | |
| AWG cross-section | AWG 24 to 20 | |
| Hole diameter | 4.34 mm | |
| Cable cross-section | 0.2-0.6 mm² | |
| Version | ring cable lug | |
| Material | brass, tin-plated | |
| max. operating temperature | 110 °C | |
| Thread size | M4 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
