41558-1 | AMP

Uninsulated ring cable lug, 0.8-2 mm², AWG 18 to 14, 3.68 mm, M3.5, 41558-1

Order No.: 71P8588
EAN: 4099891604318
MPN:
41558-1

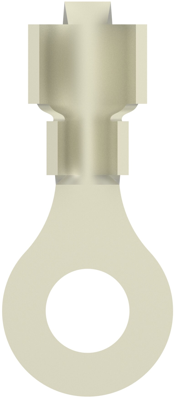

41558-1 AMP Cable Lugs Image 1

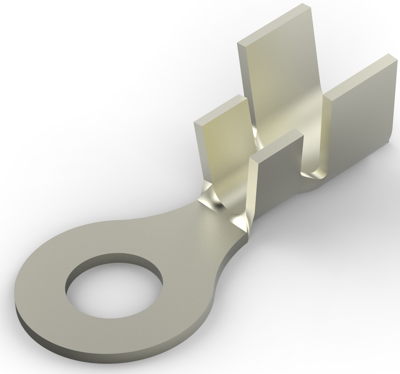

41558-1 AMP Cable Lugs Image 2

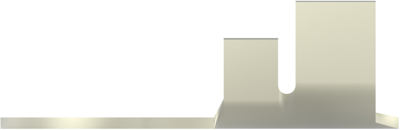

41558-1 AMP Cable Lugs Image 3

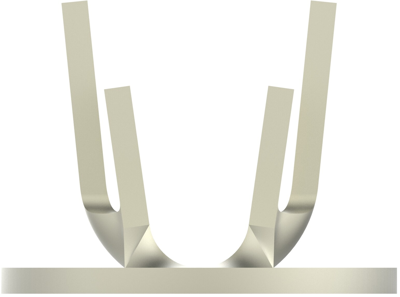

41558-1 AMP Cable Lugs Image 4

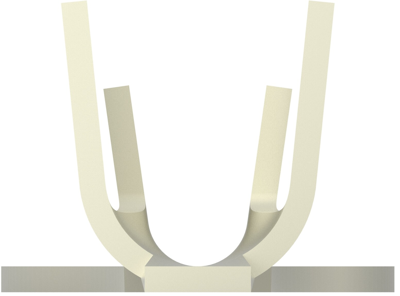

41558-1 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
0.1107 € *
Available in 5 Days: 50,000 pcs. - if ordered today
Total Price:
1,383.38 € *
Price list
Quantity
Price per unit*
12500 pcs.
0.1107 €
25000 pcs.
0.1095 €
*incl. VAT plus shipping costs
Subject to prior sale

Ring cable lug, 41558-1, AMP

Ring terminal, Ring tongue, 18 - 14 AWG Wire size, 0.8 - 2 mm² Wire size, 1624 - 4106 CMA Wire size, Stud size M3.5 / #6.

Technical specifications
Isolated No
AWG cross-section AWG 18 to 14
Hole diameter 3.68 mm
Cable cross-section 0.8-2 mm²
Version ring cable lug
Material steel
max. operating temperature 250 °C
shrinkable tubing No
Thread size M3.5
Logistics
Country of origin US
Customs tariff number 85369095
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
