41356 | AMP

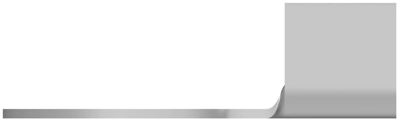

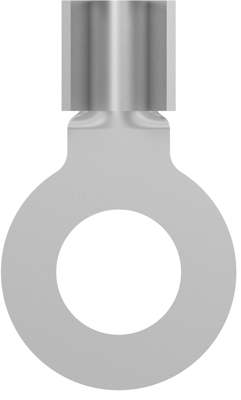

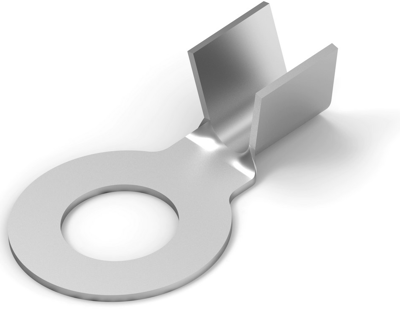

Uninsulated ring cable lug, 3.0-6.0 mm², AWG 12 to 10, 6.73 mm, M6, metal, 41356
Order No.: 35P2402
EAN: 4099889589887
MPN:
41356
Unit Price (€ / pc.)
0.2451 € *
Available in 5 Days: 25,000 pcs. - if ordered today
Total Price:
1.23 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2451 €
10 pcs.
0.2273 €
25 pcs.
0.2118 €
50 pcs.
0.1916 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 41356, AMP
Shape Description: Circular/Oval, Ring & Spade Stud Size: M6, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 1.662 g, Ring & Spade Plating Material: Tin, Contact Base Material: Brass, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: None, Wire Insulation Support: Without, Wire Size: 12 – 10 AWG, Wire Size: 3 – 6 mm², Wire Size: 6529 – 10382 CMA, Stud Diameter: 6.73 mm, Tongue Thickness: 1.02 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 5000, Ring & Spade Packaging Method: Strip/Reel
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolated | No | |
| Colour | metal | |
| Hole diameter | 6.73 mm | |
| max. operating temperature | 110 °C | |
| Cable cross-section | 3.0-6.0 mm² | |
| Version | ring cable lug | |
| Material | brass, tin-plated | |
| AWG cross-section | AWG 12 to 10 | |
| Thread size | M6 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
