41124 | AMP
Uninsulated ring cable lug, 3.0-6.0 mm², AWG 12 to 10, 5 mm, metal, 41124
Order No.: 35P2399
EAN: 4099889589856
MPN:
41124
Unit Price (€ / pc.)
0.1618 € *
Available in 5 Days: 84,000 pcs. - if ordered today
Total Price:
485.52 € *
Price list
Quantity
Price per unit*
3000 pcs.
0.1618 €
6000 pcs.
0.1392 €
*incl. VAT plus shipping costs
Subject to prior sale

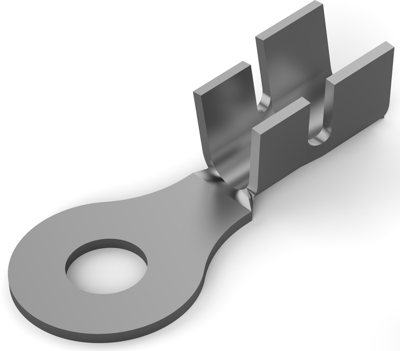

Ring cable lug, 41124, AMP
Shape Description: Circular/Oval, Ring & Spade Stud Size: #10, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 1.623 g, Ring & Spade Plating Material: Tin, Contact Base Material: Brass, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: None, Wire Insulation Support: With, Wire Insulation Diameter (Min): , Wire Size: 12 – 10 AWG, Wire Size: 3 – 6 mm², Wire Size: 6529 – 10382 CMA, Stud Diameter: 5 mm, Operating Temperature Range: -40 – 110 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 3000, Ring & Spade Packaging Method: Strip/Reel
Technical specifications
| Colour | metal | |
| Isolated | No | |
| AWG cross-section | AWG 12 to 10 | |
| Hole diameter | 5 mm | |
| Cable cross-section | 3.0-6.0 mm² | |
| Version | ring cable lug | |
| Material | brass, tin-plated | |
| max. operating temperature | 110 °C |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369095 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
