4-51864-1 | AMP
Insulated ring cable lug, 1.31-2.08 mm², AWG 16 to 14, 4.34 mm, M4, blue, 4-51864-1
Unit Price (€ / pc.)
1.1781 € *
Available: 0 pcs.
Available in 5 Days: 700 pcs.
Leadtime: 39 Weeks **

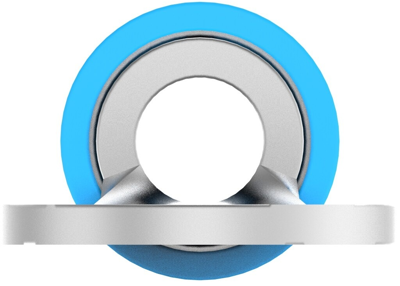

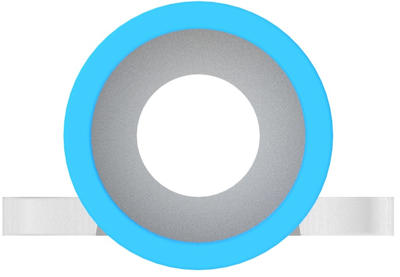

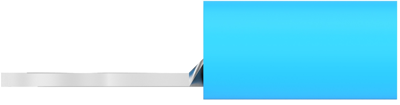

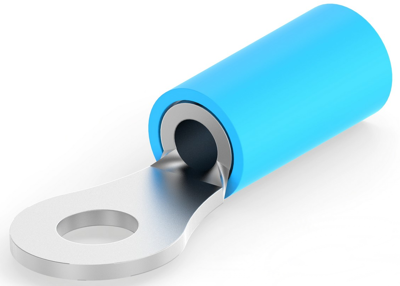

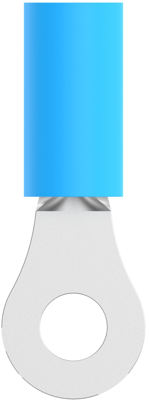

Ring cable lug, 4-51864-1, AMP
Shape Description: RING-041, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Stripe Color: Blue, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 16 – 14 AWG, Wire Size: 1.31 – 2.08 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 4.34 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Colour | blue | |
| Isolated | Yes | |
| AWG cross-section | AWG 16 to 14 | |
| Hole diameter | 4.34 mm | |
| Cable cross-section | 1.31-2.08 mm² | |
| Version | ring cable lug | |
| Material | copper, tin-plated | |
| max. operating temperature | 105 °C | |
| Material Insulation | PA | |
| Thread size | M4 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
