36954 | AMP
Insulated ring cable lug, 0.26-1.65 mm², AWG 22 to 16, 4.34 mm, M4, red, 36954
Unit Price (€ / pc.)
0.6188 € *
Available in 5 Days: 6,474 pcs. - if ordered today
Total Price:
3.09 € *
Price list
Quantity
Price per unit*
5 pcs.
0.6188 €
10 pcs.
0.5831 €
25 pcs.
0.5355 €
50 pcs.
0.4879 €
*incl. VAT plus shipping costs
Subject to prior sale

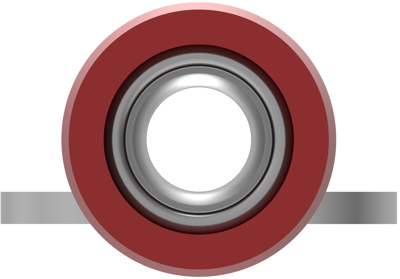

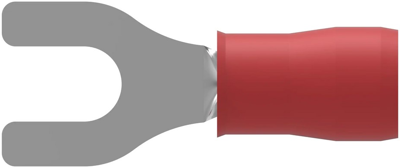

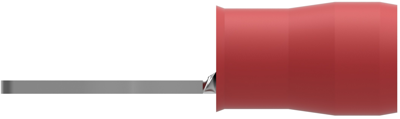

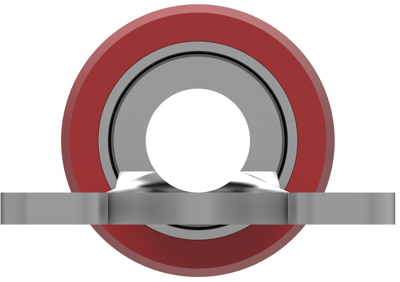

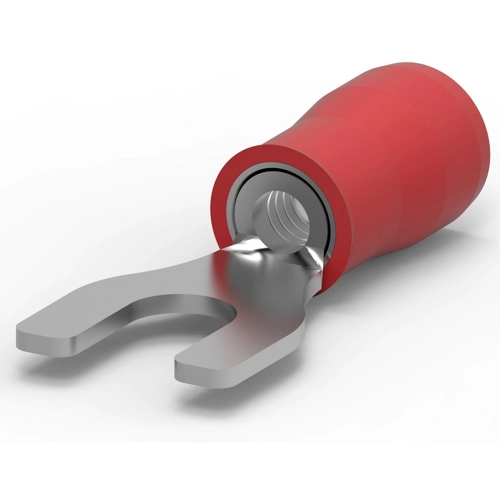

Cable lug, 36954, AMP
Shape Description: Slotted Ring-001, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Weight per Piece: .637 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Slotted Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 22 – 16 AWG, Wire Size: .26 – 1.65 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 4.34 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | copper, tin-plated | |
| AWG cross-section | AWG 22 to 16 | |
| Version | ring cable lug | |
| Isolated | Yes | |
| Cable cross-section | 0.26-1.65 mm² | |
| Colour | red | |
| Hole diameter | 4.34 mm | |
| Material Insulation | PA | |
| max. operating temperature | 105 °C | |
| Thread size | M4 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
