36935 | AMP

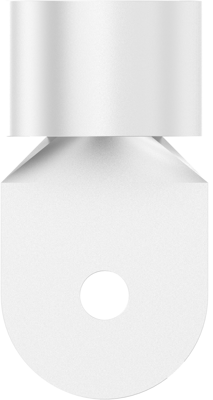

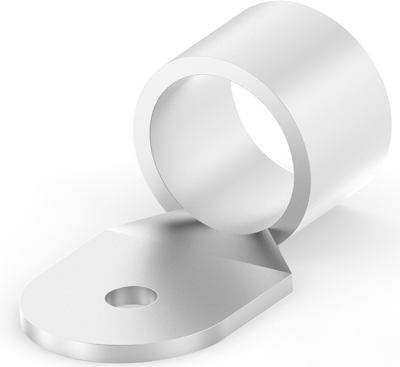

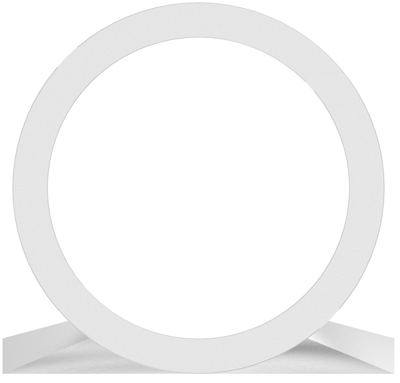

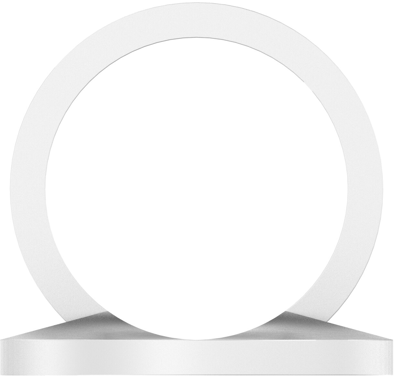

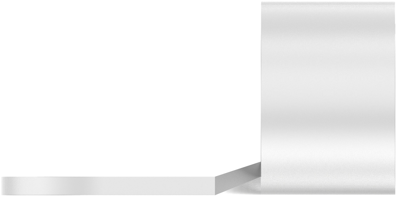

Uninsulated ring cable lug, 96.3-117 mm², AWG 4, 16.66 mm, M16, metal, 36935
Order No.: 39P8279
EAN: 4099889600469
MPN:
36935
Unit Price (€ / pc.)
11.5668 € *
Standard delivery time from the manufacturer is: 43 Weeks
Cable lug, 36935, AMP
Shape Description: RING-051, Ring & Spade Stud Size: 5/8,M16, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 45.429 g, Ring & Spade Plating Material: Copper,Tin, Military Part Class: Class II, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 0000 AWG, Wire Size: 96.3 – 117 mm², Wire Size: 190000 – 231100 CMA, Stud Diameter: 16.66 mm, Ring & Spade Overall Length: 56.03 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 50, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 4 | |
| Hole diameter | 16.66 mm | |
| Colour | metal | |
| Thread size | M16 | |
| max. operating temperature | 170 °C | |
| Cable cross-section | 96.3-117 mm² | |
| Material | copper, tin-plated | |
| Version | ring cable lug | |
| Isolated | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
