36934 | AMP

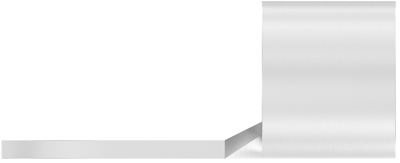

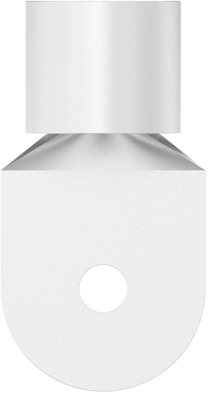

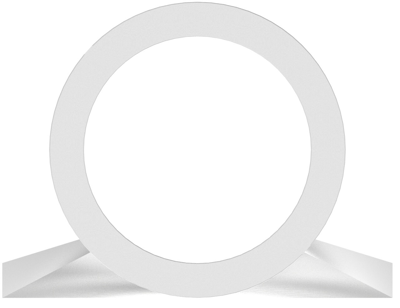

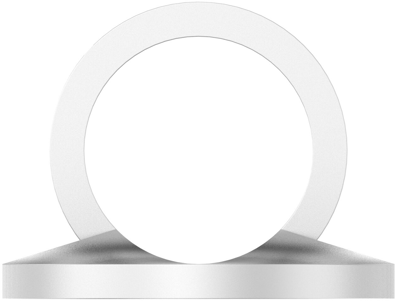

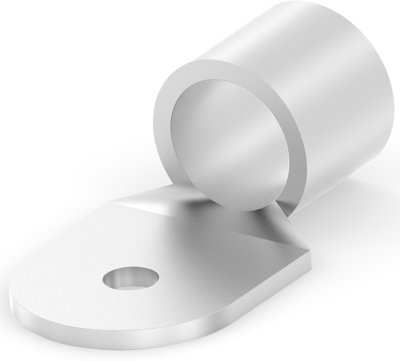

Uninsulated ring cable lug, 96.3-117 mm², AWG 4, 13.08 mm, M12, metal, 36934
Order No.: 39P8199
EAN: 4099889599817
MPN:
36934
Unit Price (€ / pc.)
10.1745 € *
Available in 5 Days: 2,021 pcs. - if ordered today
Total Price:
10.17 € *
Price list
Quantity
Price per unit*
1 pcs.
10.1745 €
5 pcs.
9.6390 €
10 pcs.
9.0202 €
25 pcs.
8.2229 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 36934, AMP
Shape Description: RING-051, Ring & Spade Stud Size: 1/2,M12, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 51.493 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 0000 AWG, Wire Size: 96.3 – 117 mm², Wire Size: 190000 – 231100 CMA, Stud Diameter: 13.08 mm, Tongue Thickness: 2.6 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 50, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | ring cable lug | |
| Hole diameter | 13.08 mm | |
| max. operating temperature | 170 °C | |
| Isolated | No | |
| Cable cross-section | 96.3-117 mm² | |
| Thread size | M12 | |
| Colour | metal | |
| Material | copper, tin-plated | |
| AWG cross-section | AWG 4 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
