36269 | AMP

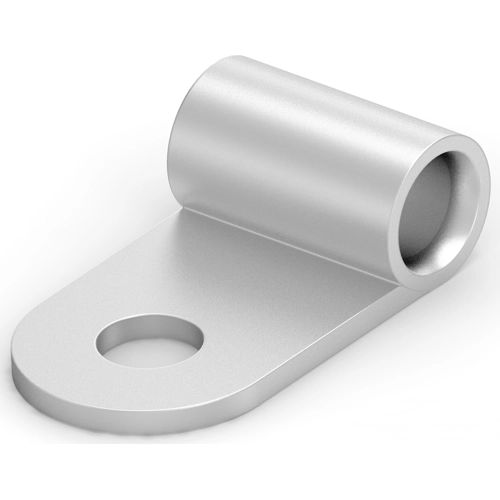

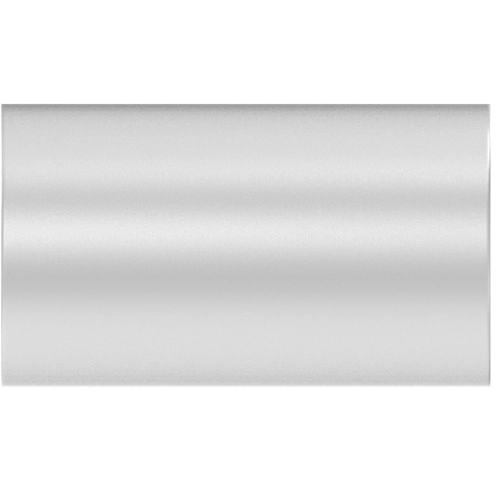

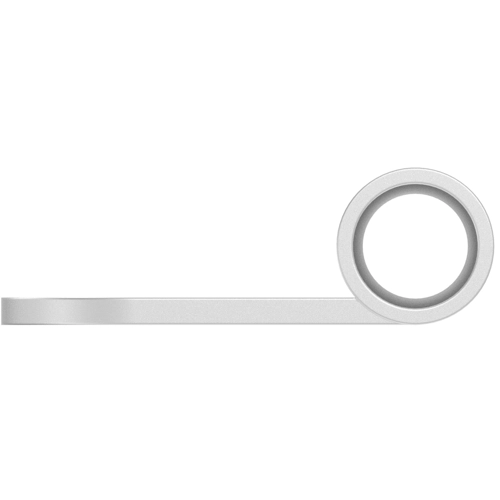

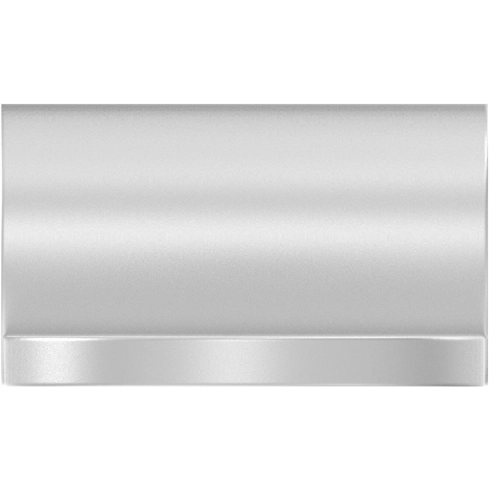

Uninsulated ring cable lug, 2.62-6.64 mm², AWG 12 to 10, 3.68 mm, M3.5, metal, 36269

Order No.: 39P8490

EAN: 4099889601664

MPN:

36269

Image may differ

Key Specification:

Version ring cable lug

Cable cross-section 2.62-6.64 mm²

AWG cross-section AWG 12 to 10

Isolated No

Colour metal

Ordering Information:

not to be sold to private customers

Download Datasheet Technical specifications

As a private customer, you can buy this item as soon as we have it back in stock.

Description

Ring cable lug, 36269, AMP

Shape Description: RING-090, Ring & Spade Stud Size: #6,M3.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 2.412 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Flag Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 12 – 10 AWG, Wire Size: 2.62 – 6.64 mm², Wire Size: 5180 – 13100 CMA, Stud Diameter: 3.68 mm, Tongue Thickness: 0.99 mm, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 500, Ring & Spade Packaging Method: Loose Piece

Technical specifications

Filter	Property	Value
	Version	ring cable lug
	Cable cross-section	2.62-6.64 mm²
	AWG cross-section	AWG 12 to 10
	Isolated	No
	Colour	metal
	Material	copper, tin-plated
	Hole diameter	3.68 mm
	Thread size	M3.5
	max. operating temperature	170 °C
