36161 | AMP
Insulated ring cable lug, 2.62-6.64 mm², AWG 12 to 10, 5 mm, yellow, 36161
Unit Price (€ / pc.)
0.4998 € *
Standard delivery time from the manufacturer is: 43 Weeks
Total Price:
2.50 € *
Price list
Quantity
Price per unit*
5 pcs.
0.4998 €
10 pcs.
0.4641 €
25 pcs.
0.4403 €
50 pcs.
0.3927 €
*incl. VAT plus shipping costs
Subject to prior sale

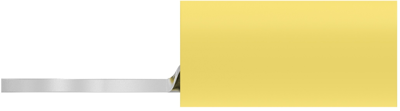

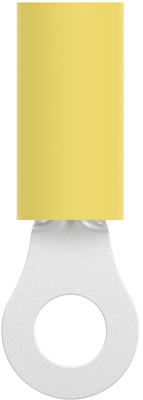

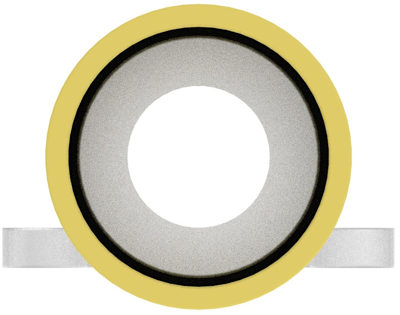

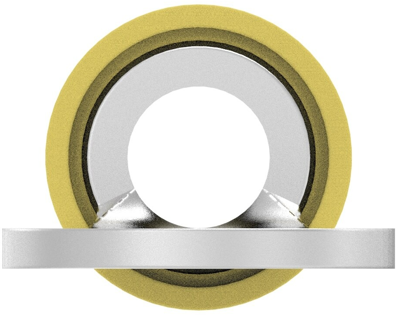

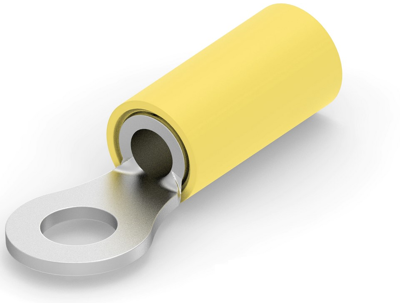

Ring tongue terminal, 36161, AMP
Ring tongue terminal, Wire size: 12 - 10 AWG, Wire size: 2.62 - 6.64 mm², Wire size: 5180 - 13100 CMA, Stud size: 10, Body style: PIDG
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | yellow | |
| Version | ring cable lug | |
| Cable cross-section | 2.62-6.64 mm² | |
| Material | copper, tin-plated | |
| max. operating temperature | 105 °C | |
| Hole diameter | 5 mm | |
| Isolated | Yes | |
| Material Insulation | PA | |
| AWG cross-section | AWG 12 to 10 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
