35775 | AMP
Uninsulated ring cable lug, 1.04-2.62 mm², AWG 16 to 14, 6.73 mm, M6, metal, 35775
Order No.: 39P8686
EAN: 4099889603125
MPN:
35775
Unit Price (€ / pc.)
0.5355 € *
Available in 5 Days: 4,875 pcs. - if ordered today

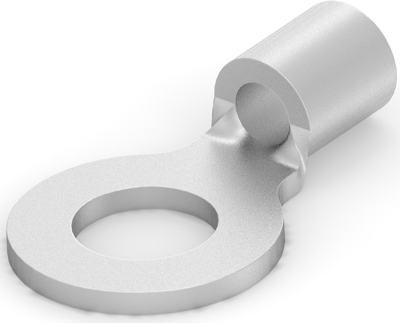

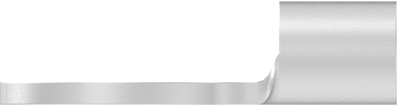

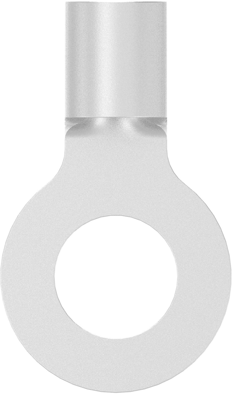

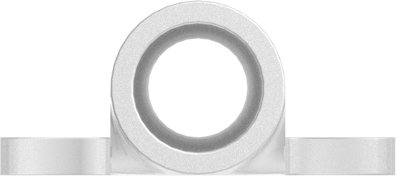

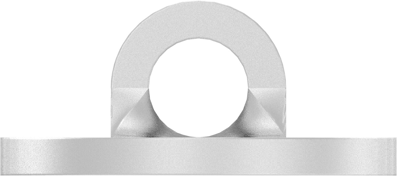

Cable lug, 35775, AMP
Shape Description: RING-048, Ring & Spade Stud Size: M6, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 2.626 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 16 – 14 AWG, Wire Size: 1.04 – 2.62 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 6.73 mm, Tongue Thickness: 1.22 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: Yes, Government Qualified: No, Packaging Quantity: 500, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | metal | |
| Hole diameter | 6.73 mm | |
| Cable cross-section | 1.04-2.62 mm² | |
| Version | ring cable lug | |
| Isolated | No | |
| Thread size | M6 | |
| max. operating temperature | 170 °C | |
| AWG cross-section | AWG 16 to 14 | |
| Material | copper, tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
