35669 | AMP

Uninsulated ring cable lug, 16.8-26.7 mm², AWG 4, 16.66 mm, M16, metal, 35669

Order No.: 39P8706
EAN: 4099889603309
MPN:
35669

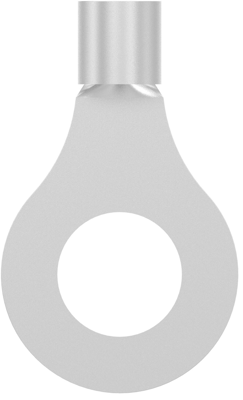

35669 AMP Cable Lugs Image 1

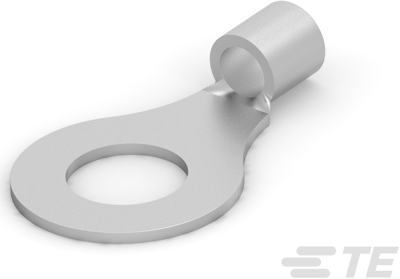

35669 AMP Cable Lugs Image 2

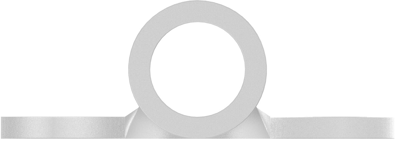

35669 AMP Cable Lugs Image 3

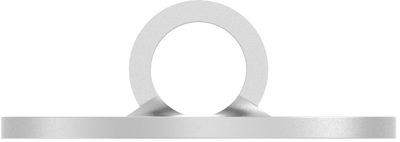

35669 AMP Cable Lugs Image 4

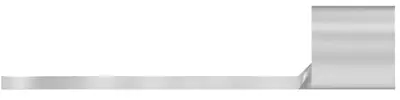

35669 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
4.0698 € *
Standard delivery time from the manufacturer is: 39 Weeks
Total Price:
4.07 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0698 €
10 pcs.
3.7842 €
25 pcs.
3.5343 €
50 pcs.
3.2130 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable lug, 35669, AMP

Shape Description: RING-048, Ring & Spade Stud Size: 5/8,M16, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 17.199 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 4 AWG, Wire Size: 16.8 – 26.7 mm², Wire Size: 33100 – 52600 CMA, Stud Diameter: 16.66 mm, Tongue Thickness: 1.78 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Loose Piece

Technical specifications
Filter Property Value
Cable cross-section 16.8-26.7 mm²
Colour metal
Material copper, tin-plated
Thread size M16
AWG cross-section AWG 4
max. operating temperature 170 °C
Version ring cable lug
Hole diameter 16.66 mm
Isolated No
Logistics
Property Value
Customs tariff number 85369010
Country of origin TW
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
