35634 | AMP

Insulated ring cable lug, 1.04-2.62 mm², AWG 16 to 14, 3.68 mm, M3.5, yellow, 35634

Order No.: 39P3635
EAN: 4099889594737
MPN:
35634
Series: PIDG

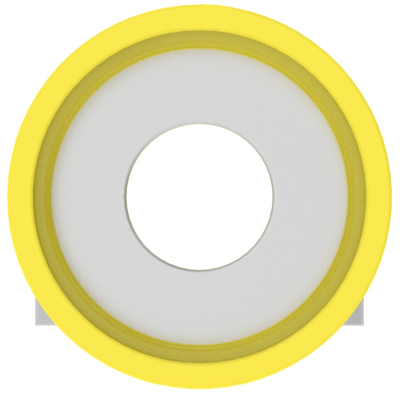

35634 AMP Cable Lugs Image 1

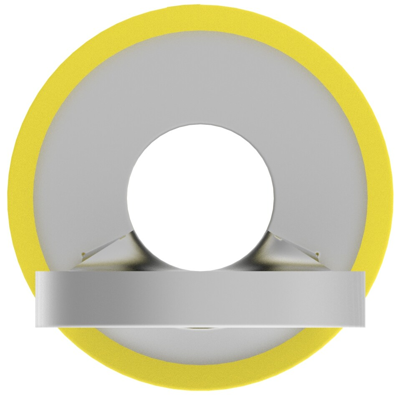

35634 AMP Cable Lugs Image 2

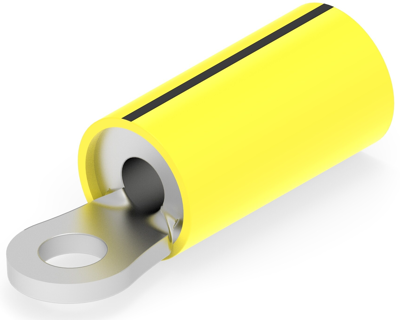

35634 AMP Cable Lugs Image 3
35634 AMP Cable Lugs Image 4
35634 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
0.3808 € *
Standard delivery time from the manufacturer is: 43 Weeks
Total Price:
1,904.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
5000 pcs.
0.3808 €

Ring tongue terminal, 35634, AMP

Ring tongue terminal, Wire size: 16 - 14 AWG, Wire size: 1.04 - 2.62 mm², Wire size: 2050 - 5180 CMA, Stud size: 6, M3.5 , Body style: PIDG

Technical specifications
Colour yellow
Isolated Yes
AWG cross-section AWG 16 to 14
Hole diameter 3.68 mm
Cable cross-section 1.04-2.62 mm²
Version ring cable lug
Material copper, tin-plated
max. operating temperature 105 °C
Material Insulation PA
Thread size M3.5
Logistics
Country of origin TW
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
