350502-1 | AMP

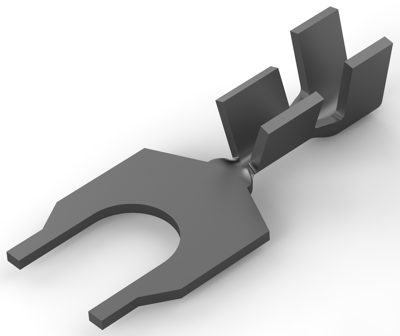

Uninsulated forked cable lug, 0.08-0.325 mm², AWG 28 to 22, M3, metal, 350502-1
Order No.: 35P2512
EAN: 4099889590586
MPN:
350502-1
Unit Price (€ / pc.)
0.1107 € *
Standard delivery time from the manufacturer is: 27 Weeks
Fork cable lug, 350502-1, AMP
Shape Description: Square Spade, Ring & Spade Stud Size: #5,M3, Ring & Spade Barrel Type: Open Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: .175 g, Ring & Spade Plating Material: Tin, Contact Base Material: Brass, Terminal & Splice Type: Spade Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: None, Wire Insulation Support: With, Wire Insulation Diameter (Min): , Wire Size: 28 – 22 AWG, Wire Size: .08 – .325 mm², Wire Size: 160 – 642 CMA, Stud Diameter: 3.18 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 18000, Ring & Spade Packaging Method: Strip/Reel
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 28 to 22 | |
| Colour | metal | |
| Thread size | M3 | |
| max. operating temperature | 110 °C | |
| Cable cross-section | 0.08-0.325 mm² | |
| Material | tin | |
| Version | forked cable lug | |
| Isolated | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
