34855 | AMP

Insulated ring cable lug, 2.62-6.64 mm², AWG 12 to 10, 6.35 mm, M6, yellow, 34855

Order No.: 39P4189
EAN: 4099889599107
MPN:
34855
Series: PLASTI-GRIP

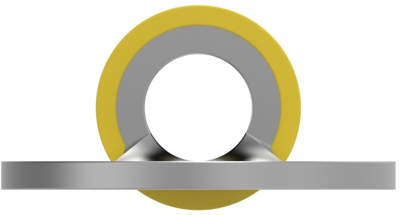

34855 AMP Cable Lugs Image 1

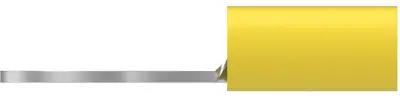

34855 AMP Cable Lugs Image 2

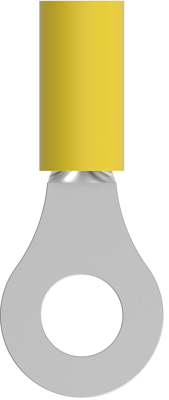

34855 AMP Cable Lugs Image 3

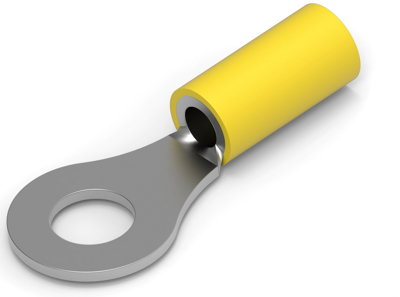

34855 AMP Cable Lugs Image 4

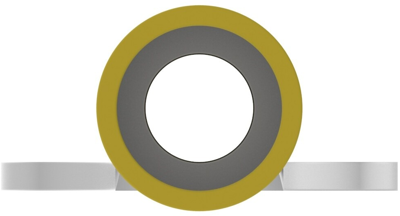

34855 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
0.5474 € *
Available in 5 Days: 52,824 pcs. - if ordered today
Total Price:
2.74 € *
Price list
Quantity
Price per unit*
5 pcs.
0.5474 €
10 pcs.
0.5117 €
25 pcs.
0.4760 €
50 pcs.
0.4284 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable lug, 34855, AMP

Shape Description: RING-043, Ring & Spade Stud Size: 1/4,M6, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 600 V, Weight per Piece: 2.408 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 12 – 10 AWG, Wire Size: 2.62 – 6.64 mm², Wire Size: 5180 – 13100 CMA, Stud Diameter: 6.35 mm, Tongue Thickness: .99 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 500, Ring & Spade Packaging Method: Loose Piece

Technical specifications
Filter Property Value
Material copper, tin-plated
AWG cross-section AWG 12 to 10
Version ring cable lug
Isolated Yes
Cable cross-section 2.62-6.64 mm²
Colour yellow
Hole diameter 6.35 mm
Material Insulation vinyl
max. operating temperature 105 °C
Thread size M6
Logistics
Property Value
Country of origin IN
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
