34853 | AMP

Insulated ring cable lug, 2.6-6.6 mm², AWG 12 to 10, 4.34 mm, M4, yellow, 34853

Order No.: 39P4197
EAN: 4099889599183
MPN:
34853
Series: PLASTI-GRIP

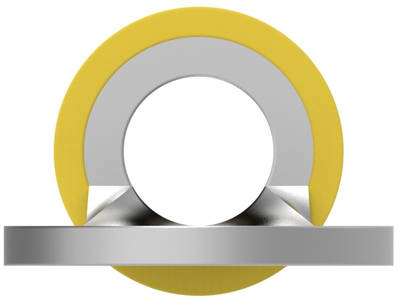

34853 AMP Cable Lugs Image 1

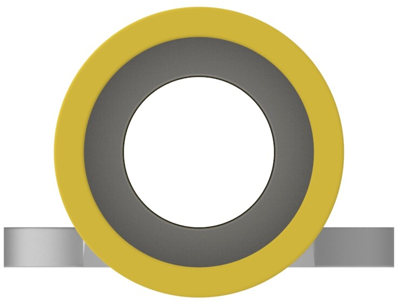

34853 AMP Cable Lugs Image 2

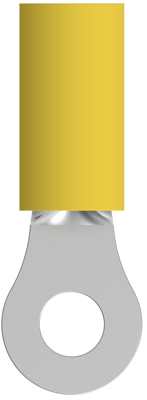

34853 AMP Cable Lugs Image 3

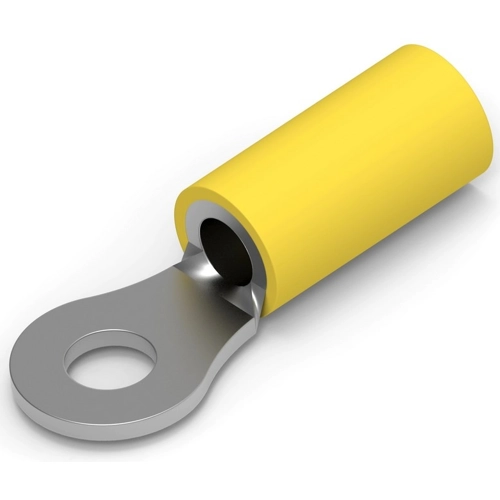

34853 AMP Cable Lugs Image 4

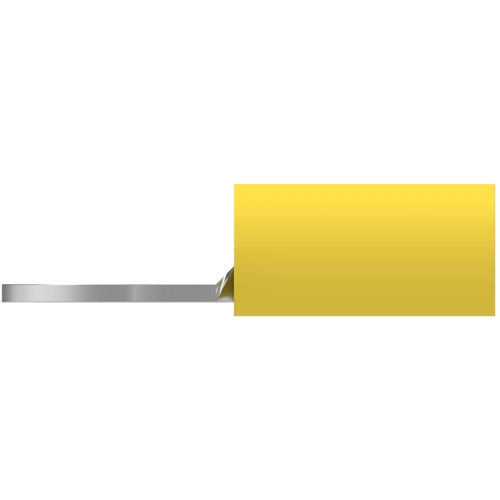

34853 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
0.3808 € *
Available: 253 pcs.
Available in 5 Days: 6,427 pcs.
Leadtime: 4 Weeks **
Total Price:
3.81 € *
Price list
Quantity
Price per unit*
10 pcs.
0.3808 €
50 pcs.
0.3689 €
200 pcs.
0.3213 €
500 pcs.
0.2761 €
*incl. VAT plus shipping costs
**Subject to prior sale

Cable lug, 34853, AMP

Regular Wire, Closed Barrel, Offset, 600 V, #8,M4, 5180 – 13100 CMA

Technical Data

  • Version: Ring cable lug
  • AWG cross-section AWG 12 to 10
  • Colour: yellow
  • Material: Copper, tin-plated
  • Cable cross-section 2.6 to 6.6 mm²
Technical specifications
Colour yellow
Isolated Yes
AWG cross-section AWG 12 to 10
Hole diameter 4.34 mm
Cable cross-section 2.6-6.6 mm²
Version ring cable lug
Material copper, tin-plated
max. operating temperature 105 °C
Material Insulation vinyl
Thread size M4
Logistics
Country of origin IN
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
