342118-1 | AMP

Insulated forked cable lug, 0.3-1.3 mm², AWG 22 to 16, 4.3 mm, M4, red, 342118-1

Order No.: 71P8097
EAN: 4099891604127
MPN:
342118-1
Series: PLASTI-GRIP

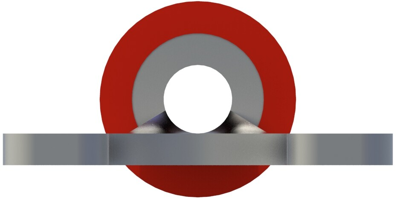

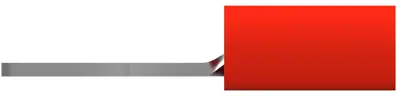

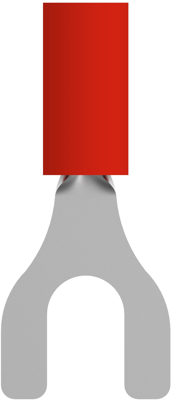

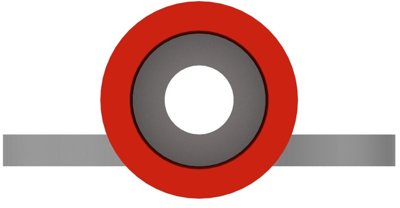

342118-1 AMP Cable Lugs Image 1
342118-1 AMP Cable Lugs Image 2
342118-1 AMP Cable Lugs Image 3
342118-1 AMP Cable Lugs Image 4
342118-1 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
0.6902 € *
Available in 5 Days: 2,680 pcs. - if ordered today
Total Price:
207.06 € *
Price list
Quantity
Price per unit*
300 pcs.
0.6902 €
900 pcs.
0.5831 €
*incl. VAT plus shipping costs
Subject to prior sale

Spade cable lug, 342118-1, AMP

Spade terminal, Spade tongue, 22-16 AWG Wire size, 0.3-1.3 mm² Wire size, Stud size M4/#8.

Technical specifications
Colour red
Isolated Yes
AWG cross-section AWG 22 to 16
Hole diameter 4.3 mm
Cable cross-section 0.3-1.3 mm²
Version forked cable lug
Material copper, tin-plated
max. operating temperature 105 °C
shrinkable tubing Yes
Material Insulation PVC
Thread size M4
Logistics
Country of origin US
Customs tariff number 85369095
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
