342102-1 | AMP

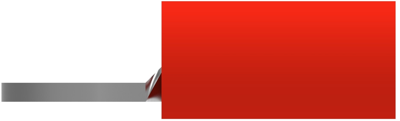

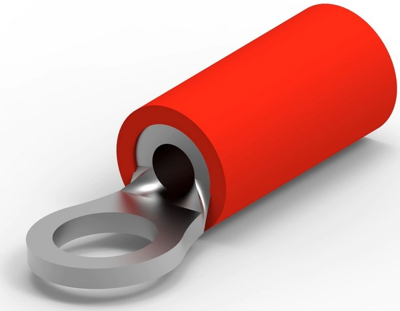

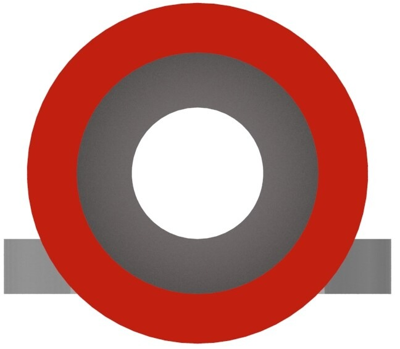

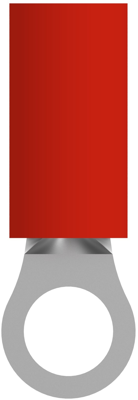

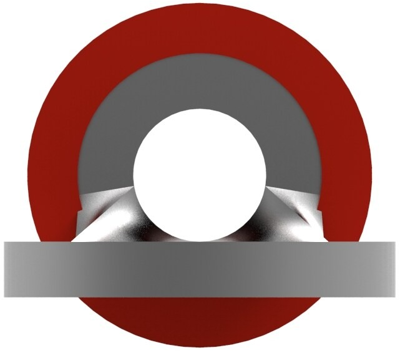

Insulated ring cable lug, 0.3-1.3 mm², AWG 22 to 16, 3.68 mm, M3.5, red, 342102-1
Unit Price (€ / pc.)
0.2678 € *
Standard delivery time from the manufacturer is: 41 Weeks
Cable lug, 342102-1, AMP
Shape Description: RING-043, Ring & Spade Stud Size: #6,M3.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 600 V, Insulation Sleeve Color: Red, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 22 – 16 AWG, Wire Size: .3 – 1.3 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 3.683 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 90 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolated | Yes | |
| Colour | red | |
| Hole diameter | 3.68 mm | |
| max. operating temperature | 90 °C | |
| Cable cross-section | 0.3-1.3 mm² | |
| Version | ring cable lug | |
| Material | copper, tin-plated | |
| Material Insulation | PVC | |
| AWG cross-section | AWG 22 to 16 | |
| Thread size | M3.5 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
