34160 | AMP

Insulated ring cable lug, 1.0-2.6 mm², AWG 16 to 14, 4.34 mm, M4, blue, 34160

Order No.: 39P4217
EAN: 4099889599374
MPN:
34160
Series: PLASTI-GRIP

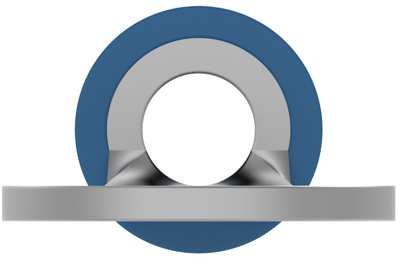

34160 AMP Cable Lugs Image 1

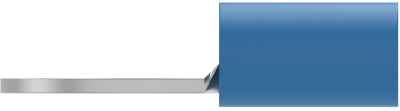

34160 AMP Cable Lugs Image 2

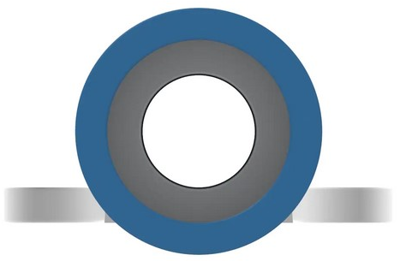

34160 AMP Cable Lugs Image 3

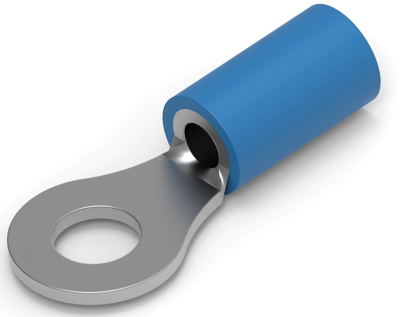

34160 AMP Cable Lugs Image 4

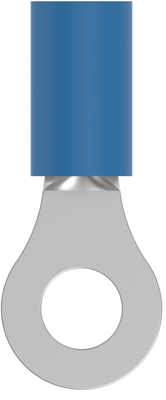

34160 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
0.2475 € *
Available: 636 pcs.
Available in 5 Days: 40,000 pcs. - if ordered today
Total Price:
1.24 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2475 €
10 pcs.
0.2297 €
25 pcs.
0.2130 €
50 pcs.
0.1940 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable lug, 34160, AMP

Regular Wire, Closed Barrel, Offset, 600 V, #8,M4, 2050 – 5180 CMA

Technical Data

  • Version: Ring cable lug
  • AWG cross-section AWG 16 to 14
  • Colour: blue
  • Material: Copper, tin-plated
  • Cable cross-section 1.0 to 2.6 mm²
Technical specifications
Filter Property Value
Material copper, tin-plated
AWG cross-section AWG 16 to 14
Version ring cable lug
Isolated Yes
Cable cross-section 1.0-2.6 mm²
Colour blue
Hole diameter 4.34 mm
Material Insulation vinyl
max. operating temperature 105 °C
Thread size M4
Logistics
Property Value
Country of origin IN
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
