34154 | AMP

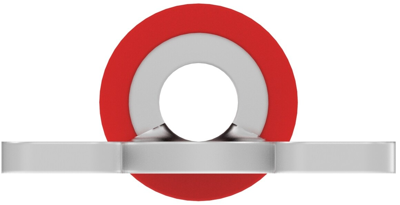

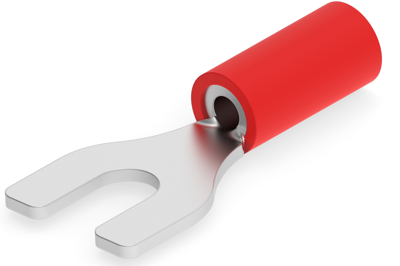

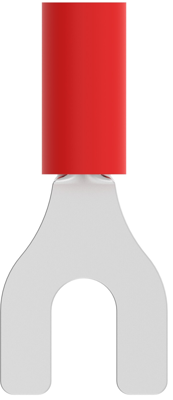

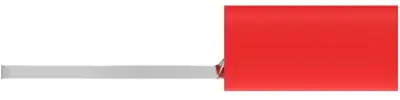

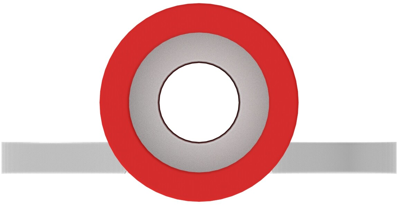

Insulated forked cable lug, 0.26-1.65 mm², AWG 22 to 16, M3.5, red, 34154
Unit Price (€ / pc.)
0.1821 € *
Available in 5 Days: 16,654 pcs. - if ordered today
Total Price:
364.14 € *
Price list
Quantity
Price per unit*
2000 pcs.
0.1821 €
3000 pcs.
0.1785 €
*incl. VAT plus shipping costs
Subject to prior sale
Fork cable lug, 34154, AMP
Shape Description: SPADE-021, Ring & Spade Stud Size: #6,M3.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Terminal Angle: Straight, Voltage (Max): 600 V, Weight per Piece: 2.566 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Spade Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 22 – 16 AWG, Wire Size: .26 – 1.65 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 3.68 mm, Tongue Thickness: .81 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolated | Yes | |
| Colour | red | |
| max. operating temperature | 105 °C | |
| Cable cross-section | 0.26-1.65 mm² | |
| Version | forked cable lug | |
| Material | copper, tin-plated | |
| Material Insulation | PVC | |
| AWG cross-section | AWG 22 to 16 | |
| Thread size | M3.5 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
