34150 | AMP

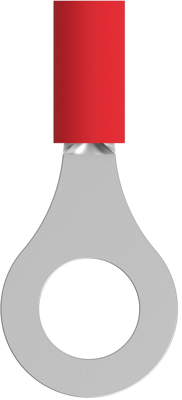

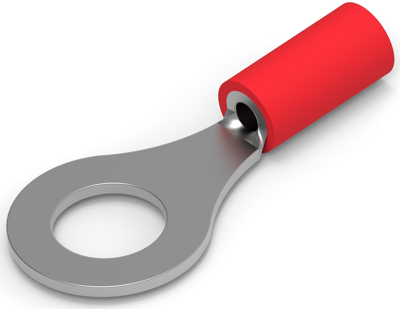

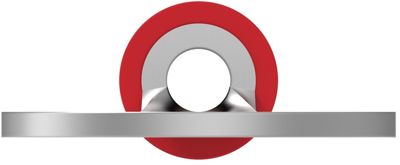

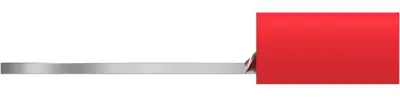

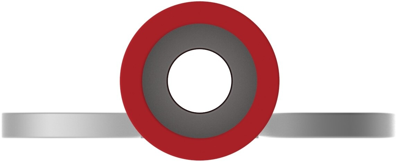

Insulated ring cable lug, 0.26-1.65 mm², AWG 22 to 16, 6.73 mm, M6, red, 34150
Unit Price (€ / pc.)
0.3570 € *
Available: 695 pcs.
Available in 5 Days: 20,175 pcs. - if ordered today
Total Price:
1.79 € *
Price list
Quantity
Price per unit*
5 pcs.
0.3570 €
10 pcs.
0.3332 €
25 pcs.
0.3094 €
50 pcs.
0.2832 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 34150, AMP
Regular Wire, Closed Barrel, Offset, 600 V, 1/4,M6, 509 – 3260 CMA
Technical Data
- Version: Ring cable lug
- AWG cross-section AWG 22 to 16
- Colour: red
- Material: Copper, tin-plated
- Cable cross-section 0.26 to 1.65 mm²
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolated | Yes | |
| Colour | red | |
| Hole diameter | 6.73 mm | |
| max. operating temperature | 105 °C | |
| Cable cross-section | 0.26-1.65 mm² | |
| Version | ring cable lug | |
| Material | copper, tin-plated | |
| Material Insulation | vinyl | |
| AWG cross-section | AWG 22 to 16 | |
| Thread size | M6 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
