34142 | AMP

Insulated ring cable lug, 0.26-1.65 mm², AWG 22 to 16, 3.68 mm, M3.5, red, 34142

Order No.: 39P4058
EAN: 4099889597882
MPN:
34142
Series: PLASTI-GRIP

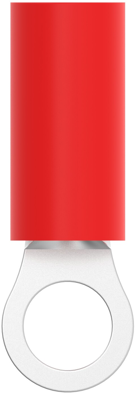

34142 AMP Cable Lugs Image 1

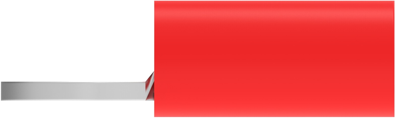

34142 AMP Cable Lugs Image 2

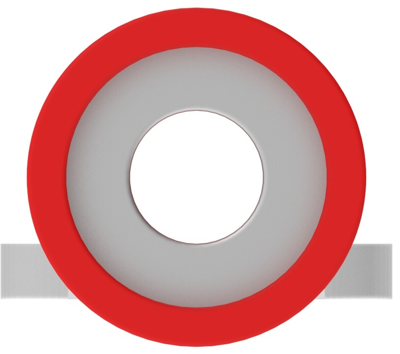

34142 AMP Cable Lugs Image 3

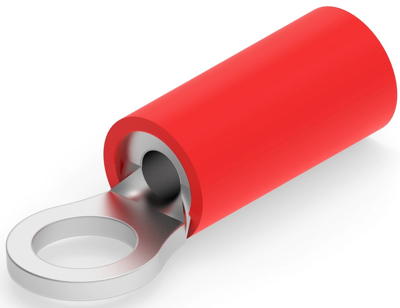

34142 AMP Cable Lugs Image 4

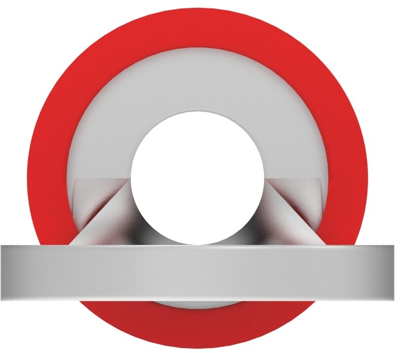

34142 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
0.3689 € *
Available: 932 pcs.
Next delivery: 1,000 pcs. on 2025-07-16
Available in 5 Days: 902 pcs.
Leadtime: 43 Weeks **
Total Price:
3.69 € *
Price list
Quantity
Price per unit*
10 pcs.
0.3689 €
50 pcs.
0.3213 €
200 pcs.
0.2892 €
500 pcs.
0.2428 €
*incl. VAT plus shipping costs
**Subject to prior sale

Cable lug, 34142, AMP

Regular Wire, Closed Barrel, Offset, 600 V, #6,M3.5, 509 – 3260 CMA

Technical Data

    Version: Ring cable lug
  • AWG cross-section AWG 22 to 16
  • Colour: red
  • Material: Copper, tin-plated
  • Cable cross-section 0.26 to 1.65 mm²
Technical specifications
Colour red
Isolated Yes
AWG cross-section AWG 22 to 16
Hole diameter 3.68 mm
Cable cross-section 0.26-1.65 mm²
Version ring cable lug
Material copper, tin-plated
max. operating temperature 105 °C
Material Insulation vinyl
Thread size M3.5
Logistics
Country of origin IN
Customs tariff number 85369095
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
