34112-3 | AMP

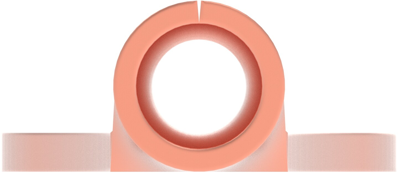

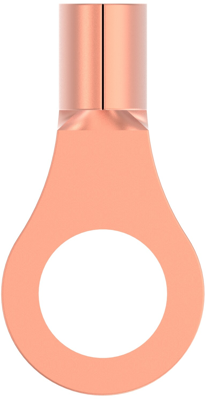

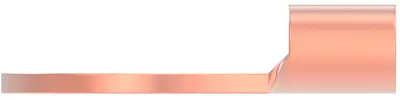

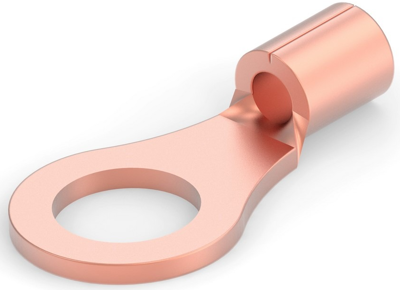

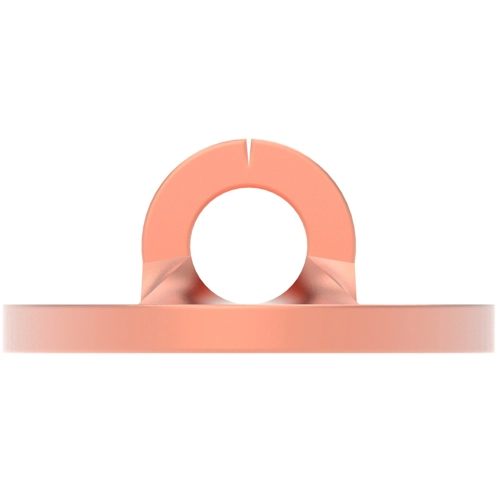

Uninsulated ring cable lug, 0.3-1.42 mm², AWG 22, 5 mm, 34112-3
Order No.: 39P8629
EAN: 4099889602609
MPN:
34112-3
Unit Price (€ / pc.)
1.0948 € *
Available in 5 Days: 1,000 pcs. - if ordered today
Total Price:
1.09 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0948 €
10 pcs.
1.0234 €
25 pcs.
0.9520 €
50 pcs.
0.8687 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 34112-3, AMP
Shape Description: RING-048, Ring & Spade Stud Size: #10, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Inspection Slot: No, Ring & Spade Plating Material: Nickel,Unplated, Military Part Class: Class II, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 22 AWG, Wire Size: .3 – 1.42 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 5 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 22 | |
| Hole diameter | 5 mm | |
| max. operating temperature | 170 °C | |
| Cable cross-section | 0.3-1.42 mm² | |
| Material | nickel | |
| Version | ring cable lug | |
| Isolated | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369040 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
