34104 | AMP

Uninsulated ring cable lug, 0.26-1.65 mm², AWG 22, 3.02 mm, M2.5, gray, 34104

Order No.: 39P8589
EAN: 4099889602265
MPN:
34104

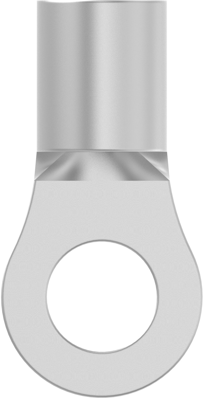

34104 AMP Cable Lugs Image 1

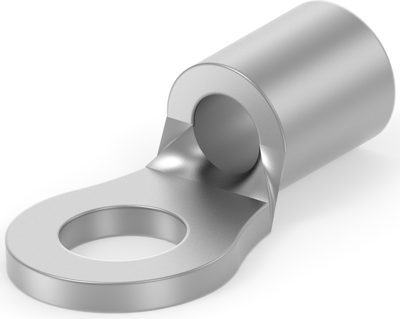

34104 AMP Cable Lugs Image 2

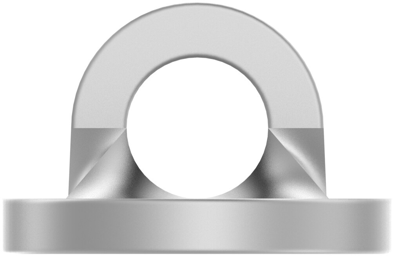

34104 AMP Cable Lugs Image 3

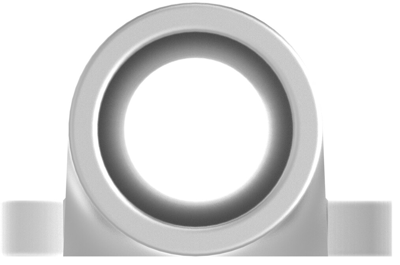

34104 AMP Cable Lugs Image 4

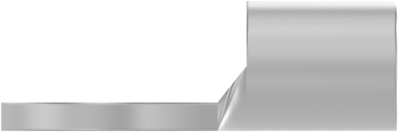

34104 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
0.3213 € *
Available: 481 pcs.
Available in 5 Days: 10,954 pcs. - if ordered today
Total Price:
0.32 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3213 €
10 pcs.
0.2927 €
25 pcs.
0.2737 €
50 pcs.
0.2487 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable lug, 34104, AMP

Regular Wire, Closed Barrel, Offset, 4,M2.5, 509 – 3260 CMA

Technical Data

    Version: Ring cable lug
  • AWG cross-section AWG 22
  • Colour: gray
  • Material: Copper, tin-plated
  • Cable cross-section 0.26 to 1.65 mm²
Technical specifications
Filter Property Value
Material copper, tin-plated
max. operating temperature 170 °C
Version ring cable lug
Hole diameter 3.02 mm
Thread size M2.5
Isolated No
AWG cross-section AWG 22
Colour gray
Cable cross-section 0.26-1.65 mm²
Logistics
Property Value
Country of origin GB
Customs tariff number 85369095
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
