33461 | AMP

Uninsulated ring cable lug, 6.6-10.5 mm², AWG 8, 6.73 mm, M6, gray, 33461

Order No.: 39P8723
EAN: 4099889603477
MPN:
33461

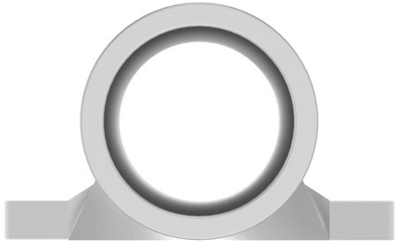

33461 AMP Cable Lugs Image 1

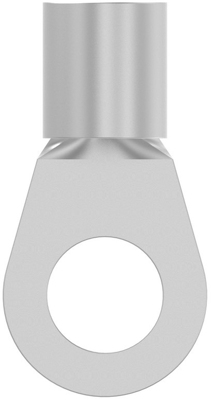

33461 AMP Cable Lugs Image 2

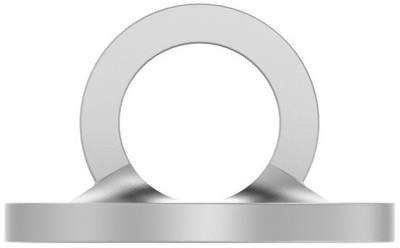

33461 AMP Cable Lugs Image 3

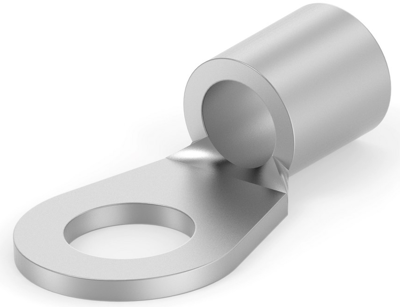

33461 AMP Cable Lugs Image 4

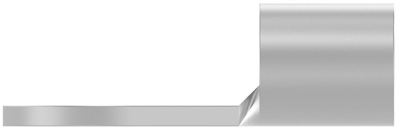

33461 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
0.5593 € *
Available: 792 pcs.
Available in 5 Days: 4,100 pcs. - if ordered today
Total Price:
0.56 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5593 €
10 pcs.
0.5117 €
25 pcs.
0.4760 €
50 pcs.
0.4403 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable lug, 33461, AMP

Regular Wire, Closed Barrel, Offset, 1/4,M6, 13100 – 20800 CMA

Technical Data

    Version: Ring cable lug
  • AWG cross-section AWG 8
  • Colour: gray
  • Material: Copper, tin-plated
  • Cable cross-section 6.6 to 10.5 mm²
Technical specifications
Filter Property Value
Material copper, tin-plated
max. operating temperature 170 °C
Version ring cable lug
Hole diameter 6.73 mm
Thread size M6
Isolated No
AWG cross-section AWG 8
Colour gray
Cable cross-section 6.6-10.5 mm²
Logistics
Property Value
Country of origin JP
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
