330969 | AMP

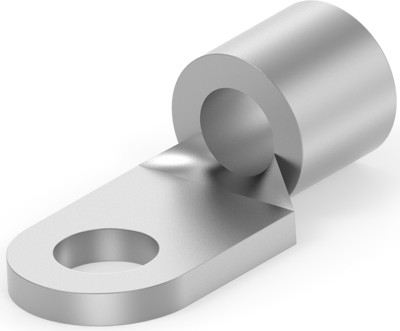

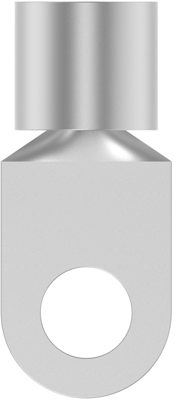

Uninsulated ring cable lug, 13-15 mm², AWG 6, 6.73 mm, metal, 330969
Order No.: 39P8721
EAN: 4099889603453
MPN:
330969
Unit Price (€ / pc.)
1.5708 € *
Standard delivery time from the manufacturer is: 39 Weeks
Ring tongue terminal, 330969, AMP
Ring tongue terminal, Wire size: 6 AWG, Wire size: 13 - 15 mm², Wire size: 20800 - 33100 CMA, Stud size: 1/4, M6
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 170 °C | |
| AWG cross-section | AWG 6 | |
| Colour | metal | |
| Material | copper, tin-plated | |
| Isolated | No | |
| Hole diameter | 6.73 mm | |
| Version | ring cable lug | |
| Cable cross-section | 13-15 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
