330966 | AMP

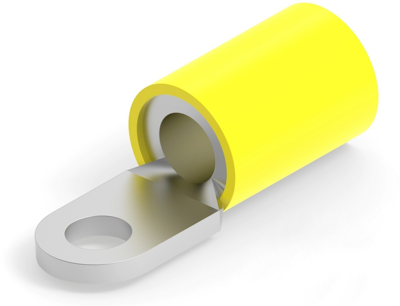

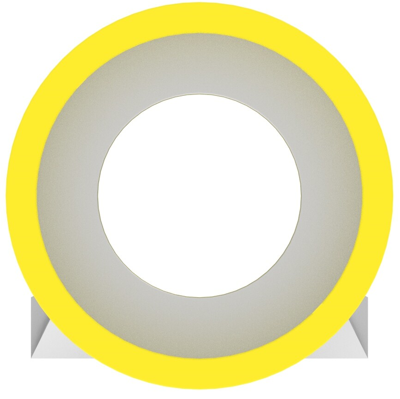

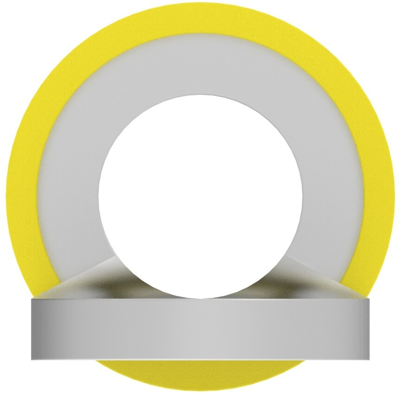

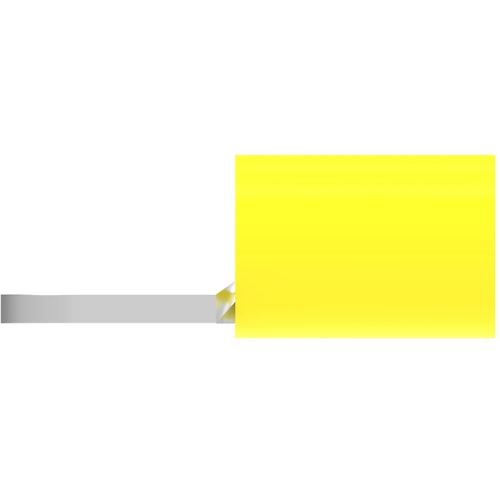

Insulated ring cable lug, 0.3-1.3 mm², AWG 16, 6.73 mm, M6, yellow, 330966
Order No.: 39P3223
EAN: 4099889591705
MPN:
330966
Unit Price (€ / pc.)
8.9607 € *
Available in 5 Days: 2,680 pcs. - if ordered today
Total Price:
224.02 € *
Price list
Quantity
Price per unit*
25 pcs.
8.9607 €
55 pcs.
8.8060 €
*incl. VAT plus shipping costs
Subject to prior sale
Ring cable lug, 330966, AMP
Terminal Features: Sheared, Ring & Spade Stud Size: M6, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Stripe Color: Yellow, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 16 AWG, Wire Size: 0.3 – 1.3 mm², Wire Size: 33100 – 52600 CMA, Stud Diameter: 6.73 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 105 °C, Heavy Duty: Yes, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Loose Piece, Comment: Heavy Duty for extra mechanical strength
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 16 | |
| Hole diameter | 6.73 mm | |
| Colour | yellow | |
| Thread size | M6 | |
| Material Insulation | vinyl | |
| max. operating temperature | 105 °C | |
| Cable cross-section | 0.3-1.3 mm² | |
| Material | copper, tin-plated | |
| Version | ring cable lug | |
| Isolated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369040 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
