330301 | AMP

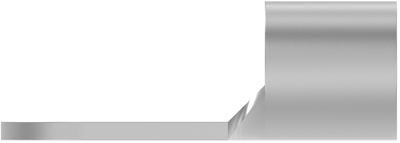

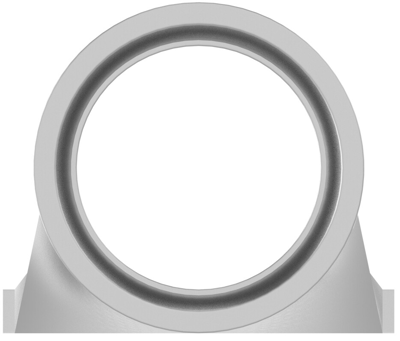

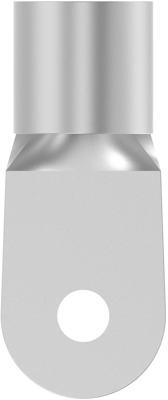

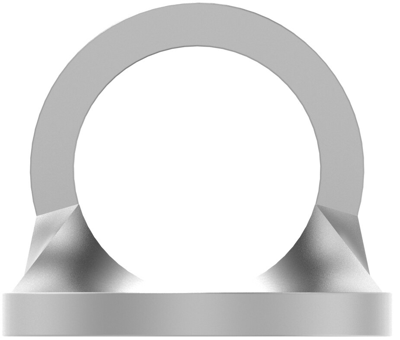

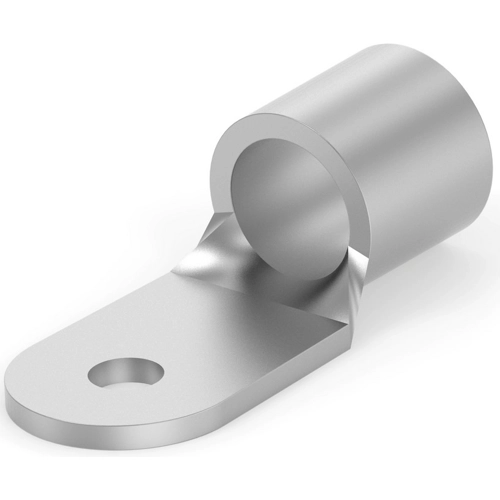

Uninsulated ring cable lug, 34-35 mm², 5 mm, 330301
Order No.: 39P8242
EAN: 4099889600186
MPN:
330301
Unit Price (€ / pc.)
5.0337 € *
Standard delivery time from the manufacturer is: 39 Weeks
Total Price:
5.03 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0337 €
10 pcs.
4.6767 €
25 pcs.
4.3673 €
50 pcs.
3.9627 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 330301, AMP
Shape Description: RING-051, Ring & Spade Stud Size: #10, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 15.275 g, Ring & Spade Plating Material: Copper,Tin, Military Part Class: Class II, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 2 AWG, Wire Size: 34 – 35 mm², Wire Size: 52600 – 83700 CMA, Stud Diameter: 5 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 50, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Hole diameter | 5 mm | |
| max. operating temperature | 170 °C | |
| Cable cross-section | 34-35 mm² | |
| Material | copper, tin-plated | |
| Version | ring cable lug | |
| Isolated | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
